YTile
A tiling window manager for Windows. C#, .NET 10, NativeAOT. Tiling only — no bar, no widgets.
YTile is an independent, from-scratch implementation informed by a study of
komorebi's behavior and architecture. No komorebi code is
copied into YTile.
See docs/komorebi-architecture-digest.md for the study and
docs/language-decision.md for why C#/NativeAOT and the v0.1 roadmap.
Design pillars
- Single-actor state. One thread owns all window-manager state and consumes one message
queue fed by OS events, IPC commands, and timer ticks. No shared mutexes.
- Narrow event capture. WinEvent hooks are registered only for the ranges the manager
consumes; the hook callback never blocks (bounded drop-oldest channel + resync on overflow).
- DWM-native chrome. Focus indication via
DWMWA_BORDER_COLOR — no overlay border windows.
- AOT-first. Developed on the JIT, shipped NativeAOT.
DisableRuntimeMarshalling and
CsWin32 with allowMarshaling: false from the first commit; both binaries publish AOT.
- Quirks as data. Per-application Windows quirks live in a declarative table consulted at
defined pipeline points, not as special cases threaded through event handling.
What it does
Nine workspaces per monitor, hidden by cloaking rather than minimising so
alt-tab stays clean. BSP (dwindle) and Columns layouts, plus monocle. Focus and
movement are directional and continue onto the adjacent monitor at the edge.
Drag a window onto another to swap them, or drag an edge to resize — the new
size folds into the layout and survives retiles. Windows too large for their
cell float automatically instead of overlapping their neighbours, and per-app
rules can force either behaviour. Monitors can be hot-plugged. The Windows
taskbar can be hidden outright, with the reclaimed strip tiled over. Status bars
talk to it over a named-pipe NDJSON API they can subscribe to and reserve screen
edges through (docs/YTILE-IPC.md).
In action

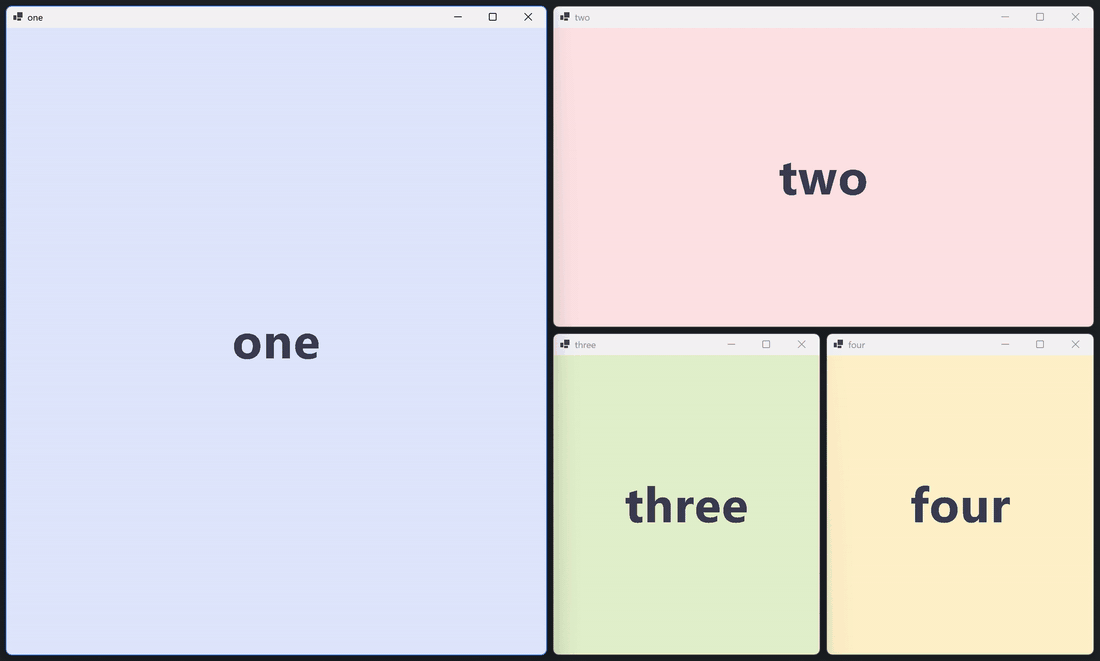

Directional focus and moving windows around the layout:

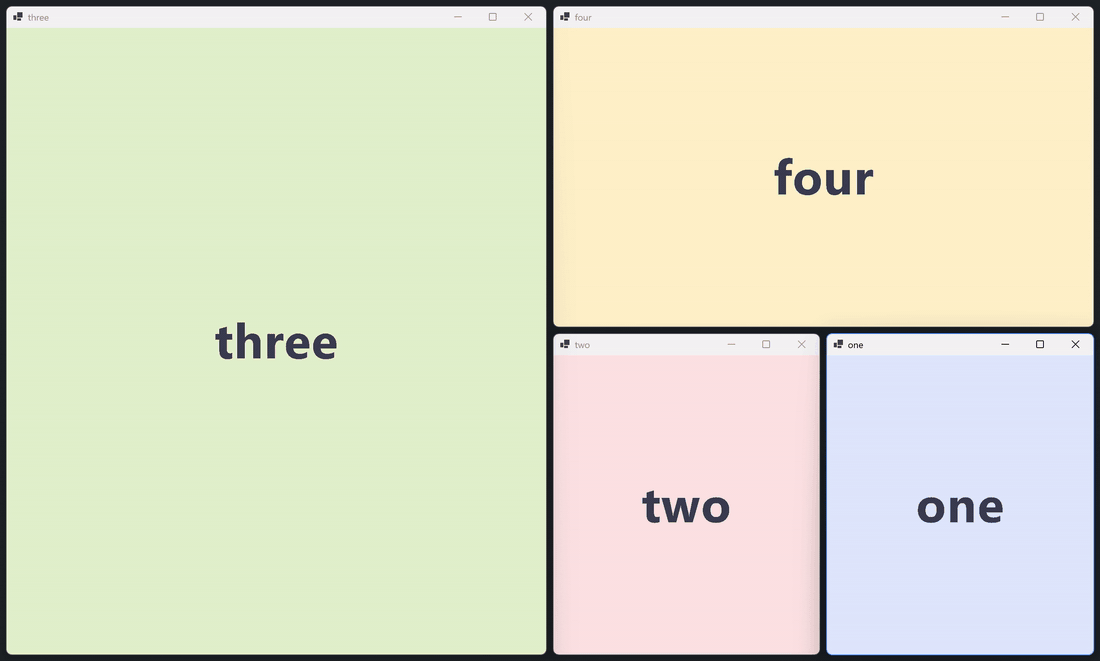

Keyboard resizing — the new size folds into the layout and survives retiles:

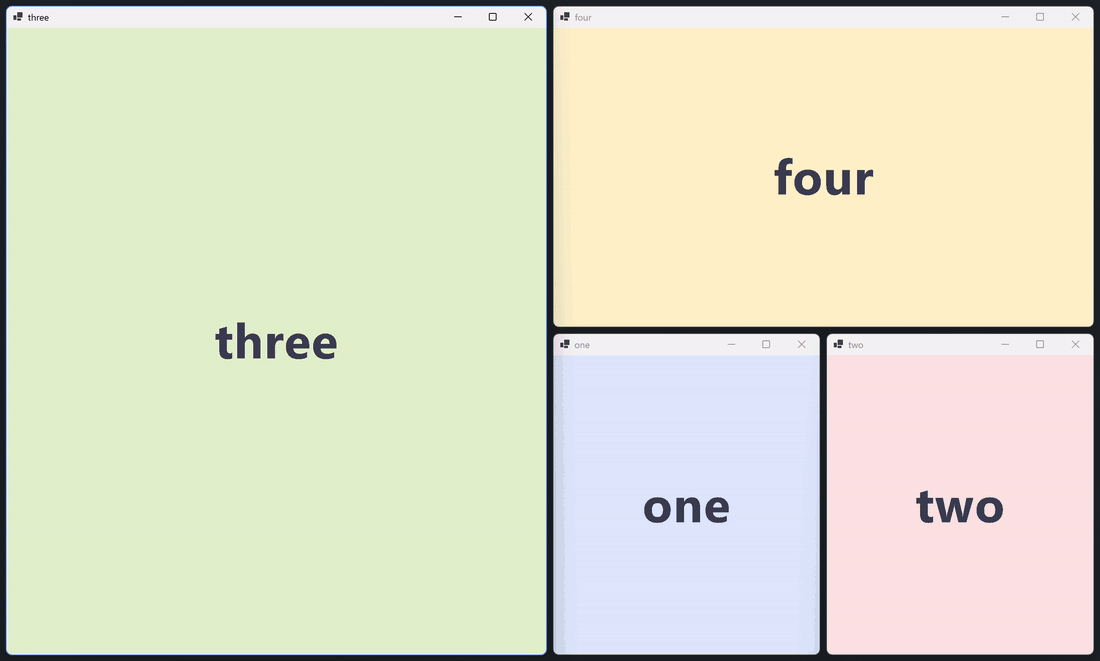

Dragging an edge does the same, live:
Monocle and sending windows between workspaces:
Install
irm https://raw.githubusercontent.com/AegiosOT/YTile/main/scripts/install.ps1 | iex
Downloads the latest release into %LOCALAPPDATA%\Programs\ytile, adds it to
your user PATH, and writes a starter config if you don't have one. Per-user, no
admin rights, nothing outside your profile. Options go in the environment,
since a piped script takes no parameters:
$env:YTILE_AUTOSTART = 1 # also start YTile at login
$env:YTILE_START = 1 # start the daemon when the install finishes
$env:YTILE_VERSION = 'v0.1.0' # pin a version instead of latest
$env:YTILE_UNINSTALL = 1 # remove YTile (config is left alone)
$env:YTILE_ALLUSERS = 1 # install to %ProgramFiles%\ytile (needs an admin
# terminal); required for elevated autostart
Re-run it any time to upgrade — it stops a running daemon first, since the
binaries are locked while it runs. Hotkeys come from the bundled
YKeys daemon: ytile start brings it up
automatically with bindings from ~/.config/ykeys/ykeys.json (a starter is
written for you). Prefer whkd? Set
$env:YTILE_HOTKEYS = 'whkd' before installing, or use ytile start --whkd
(see examples/whkdrc-ytile); --no-hotkeys starts
neither.
Scoop
scoop bucket add ytile https://github.com/AegiosOT/scoop-ytile
scoop install ytile
Scoop installs under your own profile, so ytile autostart on --elevated is
refused there — see Elevated windows. Everything else
works the same, and scoop update ytile stops the daemon before replacing its
binaries.
Building
Requires the .NET 10 SDK, plus VS Build Tools with the C++ workload for the
NativeAOT linker.
dotnet build # dev build (JIT)
pwsh scripts/publish.ps1 # NativeAOT ytiled.exe + ytile.exe -> publish/
Running
ytile start # launch ytiled in the background
# (logs to %LOCALAPPDATA%\ytile\ytiled.log)
ytile start --elevated # ...as administrator, so elevated windows tile too
ytile restart --elevated # stop + start in one step; goes through the logon task
# when there is one, so no UAC prompt
ytile autostart on # launch it at every login (ytile autostart off|status)
ytile autostart on --elevated # ...elevated, via a highest-privilege logon task
ytiled # or run it in the foreground (auto-pauses if komorebi.exe is running)
ytiled --dry-run # log every SetWindowPos/focus instead of applying it
ytiled --force # manage even while komorebi is running (they will fight)
ytiled --debug-events # watch the window-event stream with tiling verdicts
ytile state # monitors, windows, layout, focus
ytile focus left # directional focus
ytile move right # swap focused window in a direction
ytile resize left 80 # grow the focused window 80px leftward (negative shrinks)
ytile workspace 2 # switch the focused monitor's workspace (1-9)
ytile send 3 # send the focused window to a workspace
ytile layout columns # bsp | columns, per active workspace
ytile float # toggle floating for the focused window
ytile monocle # fullscreen the focused window within the layout
ytile reload # re-read the config (e.g. after toggling hideTaskbar)
ytile pause / resume / retile / stop
Windows that refuse to shrink to their cell (launchers like Battle.net enforce a
minimum size) are detected automatically and float instead of overlapping the layout.
Dragging a tiled window's edge resizes it for real: the new size is folded into
the layout (per-split ratios in BSP, per-column weights in Columns) and survives
retiles. ytile resize [px] does the same from the keyboard (resizeStep
sets the default amount); ytile retile resets all adjustments.
Configuration
~/.config/ytile/ytile.json (see examples/ytile.json; all keys optional):
{
"gap": 8,
"focusBorderColor": "#FFFFFF",
"defaultLayout": "bsp",
"resizeStep": 50,
"hideTaskbar": false,
"rules": [
{ "match": "exe", "pattern": "Battle.net.exe", "action": "float" },
{ "match": "title", "pattern": "Picture.in.[Pp]icture", "strategy": "regex", "action": "float" }
]
}
Hotkeys
Keys are handled by YKeys, a separate
hotkey daemon that ships inside every YTile release and starts with
ytile start. Its config (~/.config/ykeys/ykeys.json) maps chords to
command lines — "alt+1": "ytile workspace 1" — and any program can be
bound, not just ytile. Chord syntax, key names, and details are in the
YKeys README; config changes
apply live, and a chord some other program already owns is skipped with a
log line in %LOCALAPPDATA%\ykeys\ykeys.log.
Windows reserves chords like Win+Q and Win+E for itself, and YKeys will not
steal a chord another program registered first. ykeys shell-hotkeys hands the
Win+letter ones back when you ask it to — YTile itself never modifies your
shell hotkeys. See the YKeys README.
Prefer whkd? ytile start --whkd runs it
instead of ykeys — see examples/whkdrc-ytile — and
ytile start --no-hotkeys runs neither.
Hiding the taskbar
hideTaskbar (default false) hides the shell taskbar outright and tiles over
the space it occupied — the Hyprland-style "the bar is simply not there", rather
than Windows' auto-hide, which still reveals on hover. Hiding the tray window
does not change the work area (Windows keeps reserving the strip), so YTile
switches to full monitor bounds while the bar is gone; a status bar's reserve
still applies on top of that.
The taskbar comes back whenever YTile is not managing: on stop, on pause,
and — because a killed daemon never runs its cleanup — on the next start, from a
marker file. If the shell restarts and recreates the taskbar, YTile notices
within a couple of seconds and hides it again. Toggle it live by editing the
config and running ytile reload.
Auto-hide needs no setting at all: Windows already reports the reclaimed space
in the work area, and layouts follow it.
Rules match on exe/class/title with equals (default), prefix, or regex
strategies; actions are ignore and float. ytile reload applies changes live.
Ignored built-in, so they float on top instead of disturbing the layout:
status bars (komorebi-bar, ybar, zebar, yasb), the YSpot launcher (yspot.exe
and the yspot-* family), the Windows Security prompt
(Hello PIN, passkeys, smart cards), and installers — msiexec.exe, the MSI
and Inno Setup wizard windows, and the usual naming conventions
(setup.exe, App-1.2-setup.exe, unins000.exe). An installer these miss
can be added with a rule of your own.
Elevated windows
Windows will not let a program move a window belonging to a process at a higher
integrity level. Task Manager auto-elevates on an administrator account, so an
ordinary YTile refuses to tile it — SetWindowPos fails with ERROR_ACCESS_DENIED
and the window never budges. This is a Windows access check, not something YTile
can work around.
YTile does not pretend otherwise. A window it is forbidden to move is floated
rather than left holding a slot in the layout, with the reason in the log:
float 0x001E0C3E Taskmgr.exe — elevated window — restart with 'ytile start --elevated' to tile it
Run the daemon elevated and those windows tile like any other:
ytile start --elevated # one UAC prompt now
ytile autostart on --elevated # registers a logon task at run level HIGHEST,
# so there is no prompt at login (registering it
# needs an admin terminal once)
Elevated autostart needs an administrator-only install
autostart on --elevated registers a logon task at run level HIGHEST. That
task runs ytile.exe with a full administrator token at every logon, with no
prompt and nobody watching — so whatever can replace that binary inherits the
token. In the default per-user install the ordinary, non-elevated you owns the
directory outright, which would turn "write a file" into "run as administrator,
silently, forever". That is the classic weakly-permissioned privileged-task
escalation, and YTile refuses to set it up:
ytile: refusing to register an elevated logon task for C:\Users\you\AppData\Local\Programs\ytile
because it is owned by MACHINE\you, who can rewrite its permissions at will.
Install for all users instead, which puts the binaries under %ProgramFiles%\ytile
where only administrators can write, and registers the task for you:
# from an administrator PowerShell
$env:YTILE_ALLUSERS = 1
$env:YTILE_AUTOSTART = 1
irm https://raw.githubusercontent.com/AegiosOT/YTile/main/scripts/install.ps1 | iex
The check looks at both the permissions and the owner of the directory: an
owner can rewrite a DACL whenever it likes, so an admin-only ACL on a folder you
own would not actually be admin-only. If you would rather not have a
permanently elevated daemon at all, skip autostart and use ytile start --elevated per session — it prompts, and nothing persists.
The daemon logs which mode it is in at startup (elevated: yes / elevated: no).
The CLI and the ykeys hotkey daemon keep working unelevated against an elevated
daemon — YTile grants its own user access to the control pipe explicitly, because
an elevated process's default ACL would otherwise lock out the very CLI that
drives it.
Code signing
Release binaries are Authenticode-signed by CI under the publisher
NineFiveB — details in packaging/signing.
License
MIT — see LICENSE. (Releases up to v0.1.3 were published under
GPL-3.0; everything from v0.1.4 on is MIT.)
One carve-out: docs/komorebi-architecture-digest.md
quotes short fragments of komorebi's comments and log strings as attributed
citations. Those belong to komorebi's authors under the Komorebi License
2.0.0 and are not covered by the MIT grant — see that file's header.
