core-to-core-latency-plus KCORES
Use this command to install core-to-core-latency-plus:
winget install --id=KCORES.core-to-core-latency-plus -e core-to-core-latency-plus is used to calculate the communication latency between CPU cores. Specifically, it fixes two threads on two different CPU cores and measures the latency by having the threads perform a series of compare-and-swap operations through the CPU cache coherence protocol. This fork aims to improve the usability of the program and collect more CPU benchmark data for display.
README
CPU Core-to-Core Latency Tools +
Desc
该程序用来计算 CPU 核心间通信延迟.
具体方式为, 将两个线程固定在两个不同的 CPU 核心上, 通过CPU缓存一致性协议, 让线程执行一系列比较交换操作来测量延迟.
该 fork 旨在提升程序的易用性并收集更多 CPU benckmark 数据来进行展示.
*** 注意, 由于 MacOS 已经移除了相关接口, 导致本程序依赖的 core_affinity 库无法在 MacOS 系统上将线程绑定到特定的核心上运行, 同时也无法在运行时获取当前核心 ID. 因此本程序在MacOS 上的测试结果严格来说是无效的 (可能都被调度到了相同的一个或几个核心上). 建议 Mac 用户安装 Linux 系统进行测试 ***
How to run
如何运行:
下载预编译版本并运行
请到 https://github.com/KCORES/core-to-core-latency-plus/releases 下载.
下载完毕后, Linux 系统运行:
core-to-core-latency-plus 5000 300 -b 1 --upload
Windows 系统需要打开 CMD, cd 到文件所在目录并运行:
core-to-core-latency-plus.exe 5000 300 -b 1 --upload
注意, --upload 选项会上传您的 benchmark 结果到 https://core-to-core-latency.kcores.com.
您可以根据上传完毕后生成的链接来查看您的结果并生成 heapmap.
由于 history benchmark 结果过大 (results 文件夹内的内容生成 jupyter notebook 会达到 170MB), 因此强烈建议上传 benchmark 结果到该网站并实时生成 heapmap. 如果您需要手动查看历史结果可以访问 History Results 并安装 python 相关环境后, 使用 jupyter notebook 打开并生成.
使用 cargo 安装并运行
$ cargo install core-to-core-latency-plus
$ core-to-core-latency-plus 5000 300 -b 1 --upload
Leaderboard
更多结果欢迎访问: https://core-to-core-latency.kcores.com
- 按照延迟中间值进行排序, 越小越好
| CPU Name | Min Latency | Median Latency | Max Latency |
|---|---|---|---|
| AMD Ryzen 5 5600X 6-Core Processor | 7.6818 | 17.6634 | 21.6557 |
| AMD Ryzen 7 5700X | 7.8170 | 18.0319 | 20.5132 |
| AMD Ryzen 9 5900HX @ 3.3 GHz | 7.5602 | 18.4311 | 20.8740 |
| AMD Ryzen 7 5800U | 7.7068 | 18.9389 | 21.3417 |
| AMD Ryzen 5 5500 6-Core Processor | 10.3052 | 18.9881 | 22.6321 |
| AMD Ryzen 7 PRO 5850U 8-Core Processor | 7.7522 | 19.2608 | 22.7955 |
| Intel Core i7-6700K | 6.8767 | 19.4800 | 23.3867 |
| Intel Xeon E-2176M 2.7GHz | 6.8374 | 20.2670 | 23.0518 |
| AMD Ryzen 7 5800X3D 8-Core Processor | 7.8564 | 20.3614 | 25.6054 |
| Intel Core i5-10310U | 7.2062 | 20.4074 | 21.6365 |
| Intel Core i9-9900K CPU @ 3.60GHz | 5.9833 | 20.5833 | 24.4833 |
| AMD Ryzen 5800X3D 8-Core Processor | 5.0000 | 20.6667 | 26.0000 |
| AMD Ryzen 9 5900HX 8-Core Processor | 5.0000 | 20.6667 | 26.0000 |
| Intel Core i7-9700K 3.6GHz | 15.6667 | 20.6667 | 26.0000 |
| Intel Core i3-4150 3.5GHz | 5.3333 | 20.6667 | 26.0000 |
| IntelR CoreTM i5-4590 CPU @ 3.30GHz | 20.4767 | 21.1527 | 21.5759 |
| Intel Core 2 Duo CPU T7500 2.2GHz | 22.5429 | 22.5429 | 22.5429 |
| Intel Core i9-9980HK 2.40GHz | 18.7117 | 22.5849 | 28.2760 |
| IntelR CoreTM i7-1165G7 @ 2.80GHz | 5.7327 | 26.9433 | 29.4373 |
| Intel Core i5-1135G7 2.40GHz | 6.8352 | 27.3317 | 30.7376 |
| Intel Core i7-12700K | 4.3645 | 32.2228 | 49.7734 |
| ZHAOXIN KaiXian KX-6640A 2.6GHz 4 Cores 2019-Q2 | 32.5470 | 32.5487 | 33.0574 |
| Intel Core i7-13700KF 3.4GHz | 4.0925 | 33.9537 | 53.8947 |
| Intel Celeron 1005M 1.90GHz | 34.0033 | 34.0033 | 34.0033 |
| Intel Core i5-8600T 2.3GHz | 32.8742 | 34.1638 | 35.8292 |
| Intel Core i5-12600K 3.7GHz | 4.4808 | 34.4223 | 53.2846 |
| Intel Core i7-12700H 2.3GHz | 4.6497 | 35.8870 | 56.8566 |
| Intel Core i7-14700K 3.4GHz | 4.1059 | 36.3691 | 99.6469 |
| Broadcom BCM2837 4-Core 1.2GHz Raspberry Pi 3B | 36.6658 | 36.6658 | 53.3321 |
| Intel Core i9-12900K | 4.3483 | 37.1367 | 50.7033 |
| MCST Elbrus-8C2 8Cores 1.55GHz elbrus-v5 | 34.0720 | 37.5935 | 50.0501 |
| Loongson 3A6000HV 2.5GHz 4 Cores 2023-Q4 | 31.8685 | 38.5869 | 38.7137 |
| Apple.M1.Air | 35.9917 | 38.7749 | 47.7950 |
| Intel Xeon E5-2697v3 HT-off | 29.3343 | 39.2609 | 47.1590 |
| Loongson 3A5000HV 2.5GHz 4 Cores 2021-Q3 | 39.4932 | 39.5098 | 39.5285 |
| AMD Custom APU 0405 Valve Steam Deck APU Zen 2 4 cores SMT enabled | 10.5481 | 40.5395 | 50.6295 |
| AWS Graviton3 from-AWS-c7g.16xlarge | 29.6008 | 46.4012 | 56.8015 |
| AWS Graviton2 from-AWS-c6gd.metal | 30.3997 | 47.1996 | 58.3994 |
| IntelR Xeon Gold 6242 @ 2.8GHz | 7.3351 | 47.4590 | 58.5769 |
| Intel Core 2 Quad Processor Q9550 2.83GHz | 0.0000 | 51.6667 | 53.3333 |

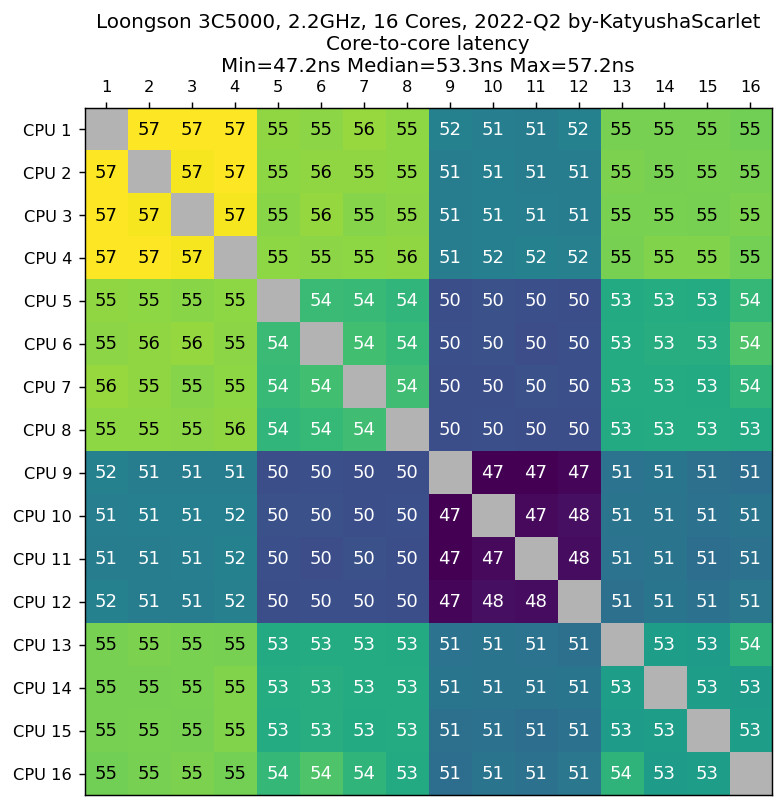

| Loongson 3C5000 2.2GHz 16 Cores 2022-Q2 | 47.1933 | 53.2741 | 57.1524 |
| Apple M1 Ultra | 39.6561 | 53.3572 | 84.1167 |
| m1.ultra.16p4e | 39.6561 | 53.3572 | 84.1167 |
| Intel Xeon W9-3475X 2.2GHz 36Cores 2023-Q2 | 36.3929 | 55.3493 | 72.3715 |
| Dual Intel Xeon Platinum 8360Y 2.40GHz | 7.5606 | 56.7837 | 119.8123 |
| Qualcomm Snapdragon850 | 57.5972 | 64.2396 | 73.3261 |
| Qualcomm Snapdragon 855 | 60.8146 | 65.6601 | 364.8424 |
| AMD Ryzen 9 7950X 16-Core Processor | 5.0000 | 67.6667 | 73.0000 |
| AMD Ryzen 9 7950X | 5.0000 | 67.6667 | 73.0000 |
| Dual IntelR XeonR CPU X5650 @ 2.67GHz | 7.1077 | 70.2779 | 79.6748 |
| HiSilicon Kunpeng 920-6426 @ 2.6GHz | 29.9564 | 71.7844 | 87.6526 |
| AMD Ryzen 5 2600 6-Core Processor | 10.3333 | 72.6667 | 99.0000 |
| AMD Ryzen 9 9950X 16-Core Processor | 17.2814 | 76.3930 | 82.6227 |
| AMD Ryzen 9 7900X 12-Core Processor | 7.0333 | 77.0833 | 80.7333 |
| AMD Ryzen 9 5950X 3.40GHz | 7.3642 | 82.5303 | 88.2414 |
| AMD Ryzen 9 5900X | 7.5500 | 82.5500 | 86.9833 |
| SpacemiT K1 1.60GHz 8-Core | 32.5704 | 85.3937 | 85.7814 |
| IntelR AtomTM CPU D510 @ 1.66GHz | 10.6665 | 85.9986 | 86.6652 |
| AMD Ryzen 9 3900X 12-Core Processor | 6.7759 | 87.2548 | 95.8354 |
| Broadcom BCM2711 Quad core Cortex-A72 ARM v8 64-bit SoC 1.8GHz Raspberry Pi 4B | 88.9931 | 89.8020 | 89.9820 |
| AMD Ryzen 7 2700X Eight-Core Processor | 9.5963 | 90.7295 | 94.2679 |
| IntelR Xeon PhiTM CPU 7210 @ 1.30GHz | 40.9553 | 91.0294 | 112.4597 |
| AMD Ryzen Threadripper 3960X 3.80GHz 24 Cores Zen 2 3rd Gen 2019-Q4 | 6.3958 | 94.6282 | 104.0642 |
| IntelR XeonR Platinum 8375C CPU @ 2.90GHz from-AWS-c6i.metal | 7.9685 | 98.6915 | 116.8181 |
| AMD EPYC 74F3 24-Core Processor | 8.9649 | 98.8013 | 107.1125 |
| Dual Intel Xeon Platinum 8358 CPU 2.60GHz | 41.0048 | 98.9467 | 124.8291 |
| Dual Intel Xeon Gold 6336Y 2.40GHz | 7.3638 | 99.7868 | 114.1930 |
| AMD Ryzen Threadripper 3990X 64-Core Processor | 19.1909 | 102.9295 | 112.4265 |
| AMD Ryzen Threadripper PRO 3945WX 12-Core Processor | 6.1877 | 105.0442 | 112.1279 |
| Intel Xeon Phi 7210 1.30GHz | 53.1602 | 105.3218 | 113.0751 |
| Dual IntelR XeonR CPU E5-2690 0 @ 2.90GHz | 8.2683 | 105.4716 | 171.7845 |
| IntelR XeonR CPU E5-2695 v4 @ 2.10GHz | 7.4887 | 107.2264 | 126.9100 |
| Dual IntelR XeonR CPU E5-2630 v4 @ 2.20GHz | 8.0845 | 107.8309 | 129.0857 |
| AMD EPYC 9754 128-Core Processor | 28.8509 | 109.3847 | 119.6138 |
| AMD EPYC 7773X | 9.9268 | 114.8502 | 139.9596 |
| AMD EPYC 7773X 64-Core Processor | 9.9268 | 114.8502 | 139.9596 |
| Dual IntelR XeonR CPU E5-2680 v4 @ 2.40GHz | 7.8932 | 117.5104 | 144.9577 |
| Dual Intel Xeon E5-2698v3 2.3GHz | 5.0000 | 119.6667 | 224.0000 |
| AMD Ryzen 5 3500X 6-Core Processor | 47.0000 | 120.0000 | 140.6667 |
| Intel Xeon CPU E5-2695v4 2.10GHz | 35.1843 | 120.1341 | 161.3051 |
| IntelR XeonR Platinum 8275CL CPU @ 3.00GHz from-AWS-c5.metal | 7.4651 | 128.6704 | 139.7132 |
| Dual Intel Xeon E5 2620V2 2.10GHz | 11.2104 | 130.1963 | 201.5718 |
| Dual IntelR Xeon Gold 6242 @ 2.8GHz | 7.2657 | 135.1955 | 146.1889 |
| Apple M1 Pro | 38.3332 | 144.1669 | 156.5817 |
| AMD Ryzen Threadripper 1950X | 9.9778 | 150.9642 | 160.0195 |
| AMD Ryzen Threadripper 1950X 16-Core Processor | 9.9395 | 152.7651 | 165.8613 |
| Dual Ampere Altra Processor Q80-30 CPU 3.0GHz | 67.9924 | 156.2753 | 210.6564 |
| Quad Intel Xeon E5-4650v2 2.4GHz | 10.7816 | 157.4775 | 176.0418 |
| Apple M2 Max | 37.0688 | 172.0697 | 181.8459 |
| Dual Ampere Altra Processor Q80-30 CPU 3.0GHz NUMA-off | 78.4478 | 179.9726 | 239.3343 |
| Dual AMD EPYC 9654 96-Core Processor | 24.1957 | 184.6257 | 200.9054 |
| AMD Ryzen 9 9950X 16-Core Processor | 17.0227 | 190.4729 | 235.5363 |
| AMD EPYC 7R13 48-Core Processor from-AWS-c6a.metal | 9.7475 | 194.5823 | 208.5112 |
| Dual AMD EPYC 9454 48-Core Processor | 10.3170 | 196.7665 | 207.1196 |
| Dual AMD EPYC 9754 128-Core Processor | 12.6618 | 202.4880 | 216.0390 |
| Phytium D2000 8-Core | 58.6155 | 211.9101 | 223.8014 |
| Dual AMD EPYC 7302 16-Core Processor | 8.3712 | 227.2905 | 249.2347 |
| Dual AMD EPYC 7702 64-Core Processor | 24.1273 | 228.9297 | 251.3631 |
| MCST Elbrus-8C 8Cores 1.2GHz elbrus-v4 | 42.7973 | 253.2212 | 320.5725 |
| NXP LX2160A-RDB 16x Arm Cortex-A72 2.2GHz | 60.0019 | 260.0081 | 273.3420 |
| Dual AMD EPYC 7742 64-Core Processor | 8.0196 | 260.6432 | 290.4366 |
| AMD FX-8300 8-Core Processor | 41.9496 | 267.5885 | 339.6446 |
| Dual AMD EPYC 7763 64-Core Processor | 10.1847 | 289.4902 | 337.3357 |
| Dual AMD EPYC 7601 32-Core Processor | 11.4781 | 354.8678 | 429.9534 |
| Dual Sun-Oracle SPARC T4 8 cores@2.85 GHz | 97.3333 | 355.6667 | 356.3333 |
| Dual Loongson 3B4000 1.8GHz 8 Cores 2019-Q4 | 123.0064 | 368.8299 | 547.2583 |
| Dual IBM Power7 8 cores@3.3 GHz 2010-Q1 | 156.6639 | 433.3258 | 449.9958 |
| Dual IBM Power9 8335-GTH 16-core 2.7GHz | 0.0000 | 683.3050 | 883.2968 |
History Results
License
MIT
