Use this command to install ClaudeBar for Windows:
winget install --id=Yovancas.ClaudeBarWin -e
ClaudeBar for Windows is a system-tray application designed to monitor Claude Code usage in real-time, providing users with accurate information on their 5-hour and 7-day quotas. This tool helps developers and frequent Claude Code users manage their resource consumption efficiently.
Key Features:
Real-time Monitoring: Tracks both the 5-hour and 7-day quotas, offering precise updates on current usage.
Usage Predictions: Warns users when they might run out of quota, helping them plan their work effectively.
Historical Charts: Visualizes usage trends over time through detailed graphs, aiding in better resource management.
Customization Options: Supports multiple themes and 9 languages, ensuring the tool adapts to various user preferences and environments.
Local Processing: Ensures data privacy by processing information locally without any telemetry.
Audience & Benefit:
Ideal for developers and Claude Code users who need efficient quota management. ClaudeBar provides peace of mind with real-time updates, helping users avoid unexpected quota shortages. The visual charts enhance understanding of usage patterns, while customization options ensure the tool integrates smoothly into different workspaces. Available via Winget installation for ease of use.
A tiny Windows system-tray monitor for your Claude Code usage —
it reads your real 5h / 7d quota from the same endpoint Claude Code uses,
predicts when you'll run out, and charts your history. All local. Zero telemetry.
Not affiliated with Anthropic. ClaudeBar just reads the quota your own Claude Code session already has.
> New in v0.3.9 (an audit sprint + a UX polish pass rolled into one — a big jump from v0.3.7):
> dynamic model families (Fable, Mythos and whatever's next show up on their own) priced from
> models.dev with an offline fallback and a privacy toggle; quota bars that fill by real %
> (the color finally agrees with the length); per-window pace + ETA; a tray icon that fits
> 99+ and keeps its colorblind shape under the attention dot; WCAG contrast and 125% / 150%
> DPI throughout; and a more legible mascot. Full notes:
> installer/notes/0.3.9.md.

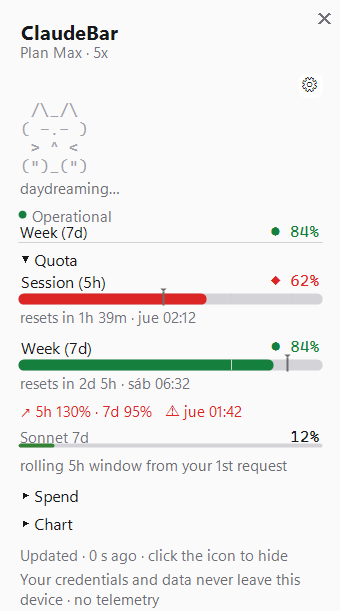

What is ClaudeBar?
A small icon sits next to your clock and always shows how much of your Claude quota
you've burned. Click it and a clean panel slides open with the full picture: your 5-hour
and 7-day windows as real percentages (straight from Anthropic, not a guess), a
burn-rate prediction that warns you before you run dry, a per-model spend estimate, a
usage chart, and a little ASCII cat that reacts live to your running sessions.
Two numbers, two truths — and ClaudeBar is honest about which is which:
Quota % (5h / 7d) is REAL — the exact figure Anthropic returns to Claude Code itself.
The $ spend is an ESTIMATE — an API-equivalent cost computed locally from your transcripts. It is not your subscription bill.
And it's honest visually, too. The quota bars fill by your real % (green → amber → red, so
a fuller bar is always a warmer bar — no more "57% in red / 84% in green"), every model family
(Opus, Sonnet, Haiku, Fable, Mythos, and whatever ships next) shows up on its own with a name
and a color, and the spend uses live list prices from models.dev with an
offline fallback — not a table baked into the binary.

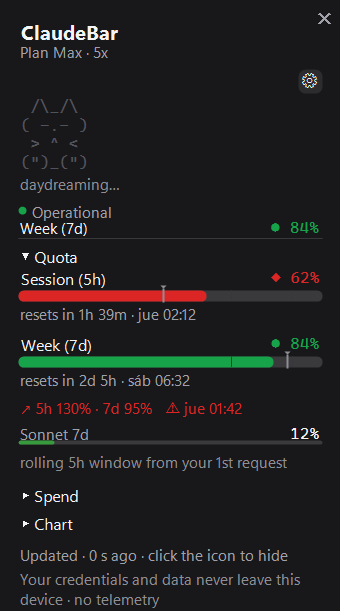

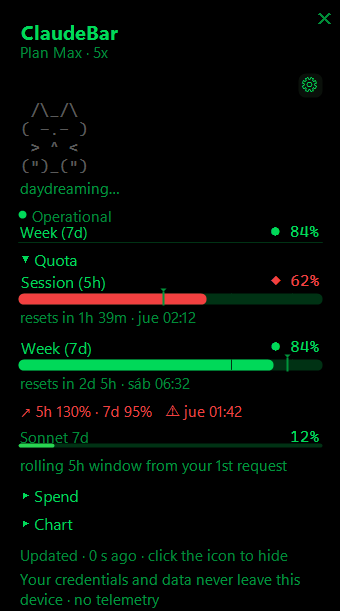

Three themes — Dark, Light, and CLI (the CLI shot is in Quota % chart mode):

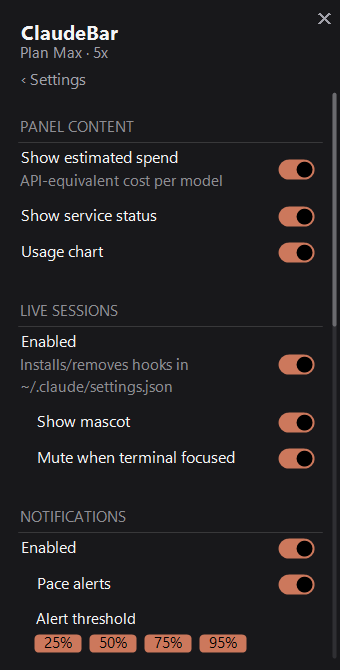

One grouped settings screen — every option on a single, clean page, with master rows that
gate their dependents (turn on live sessions, then the mascot control wakes up). The panel caps
its height at ~65% of your screen and scrolls with the mouse wheel (thin scrollbar on the
right) — it remembers your scroll position, and a clear ‹ Back returns to the dashboard:
The tray icon, by status / pace — it shows the higher of your two windows and shades from
green to amber to red as you climb:

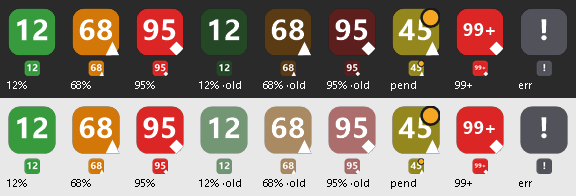

And the degraded / accessibility states, so you always know what a non-green icon means —
stale ·old, error !, the warn-triangle / critical-diamond colorblind shapes, and the
amber attention dot (shown at 48px and at real 16px size on a light and a dark taskbar):
Screenshots/animations use synthetic demo data.
Features
Tray icon — readable at a glance, accessible by design
The badge by the clock shows the higher of your two windows (5h session / 7d weekly) so a
single number always reflects your tightest limit.
Three modes (Settings → Icon): % percent used (default), ▲ pace (how far
ahead of the ideal burn-rate you are), or %▲ both — number is the %, but the color
comes from pace, so you get an early warning even while the number is still low.
Continuous color gradient — smoothly interpolates green → amber → red instead of hard
jumps, using two configurable thresholds (default warn 70% / critical 90%). Exact tones
come from the active theme.
Colorblind-safe shapes — beyond color, a small shape rides in the corner: triangle =
warn, diamond = critical (none when you're OK). Drawn in the same auto-contrast color as
the number. The same ●/▲/◆ glyph repeats in the panel header — and it now survives the
attention dot too: the colorblind shape is drawn inside the dot, so a critical badge with
a pending session is still legible without color. Always on, by design.
Auto-contrast text (WCAG) — the number is not hard-coded white. ClaudeBar computes the
perceptual luminance of the badge color and flips the text black or white so it stays legible
on a light or dark taskbar, clearing the contrast bar in every theme.
Crisp at any DPI — rendered internally at 48px and downscaled by Windows, sharp at 125% /
150% scaling. At ≥100% utilization it shows 99+fit to the box (the glyph is sized to the
badge — never a clipped 100).
Amber attention dot — when live sessions are on and a Claude Code session is waiting for
your OK or your input, a small amber dot appears in the corner. Your silent "Claude needs you,"
independent of the quota color.
Degraded states made legible — if data goes stale (offline, rate-limited, or older than
3× your refresh interval) the icon dims rather than lying to you; if there are no
credentials / the token expired / you're rate-limited with nothing to show, it becomes a
neutral ! badge.
Tooltip on hover — two compact lines, e.g. 5h 41% (↻2h 13m) / 7d 63% (↻4d 2h), with a
⚠ previous data (offline) line when the last fetch wasn't fresh, and a plain status message
(not signed in / session expired / rate limited / offline) when there's no data at all.
(Windows caps tray tooltips at 127 chars, so it's clipped to fit if needed.)
The badge climbing 5→99%: the green→amber→red gradient, the colorblind triangle/diamond shapes kicking in, and the amber attention dot blinking independently of the quota color.
> Click the icon to open/close the panel. Everything else lives in a deliberately minimal
> right-click menu: Dashboard · Settings · Live sessions · Check for updates · Exit.
Dashboard — the full picture in a narrow panel
A borderless, drop-shadowed popup (~340px wide) that auto-sizes to whatever you enable.
Sections are a collapsible accordion (Quota → Sessions → Spend → Chart); collapse what you don't
need and the panel shrinks to fit.
5h (session) and 7d (weekly) quota bars — real %, each with its reset countdown
(resets in 1h 40m · Wed 04:18). The bar fills and colors by your real % (green → amber →
red), so the length and the color always agree — a fuller bar is a warmer bar. Your pace (how
fast you're burning vs. the clock) rides on a separate ▾ marker colored by pace status, so
the two signals never fight. A footnote reminds you the 5h window is rolling — it counts from
your first request, not a fixed clock hour.
Pace line with per-window ETA — ↗ 5h XX% · → 7d XX% (used% vs the ideal for how much of the
window has elapsed; over 100% = you're ahead of pace). Each window is colored by its own
status (a healthy 7d no longer turns red just because 5h is hot) with its own arrow, and a
separate ⚠ + estimated run-out time per window if you're projected to run dry before the
reset.
Dynamic per-model rows — the spend list and weekly-limit mini-bars are built from your
data, not a fixed list: every family that appears (Opus / Sonnet / Haiku / Fable /
Mythos / …) gets its own row, name and color, and a row that's still at 0% is dimmed so the
empty data never shouts louder than the real numbers.
Glance header — the single most-utilized window in one line (Session (5h) ◆ 87%), plus
the service-health dot — without duplicating the full bar below.
Estimated spend by model — $ per model over a configurable window, biggest first, priced
from models.dev list rates. A model with no known price shows — no rate and is left out of
the total (no faking it at $0). API-equivalent estimate, not your bill (see
How the data works).
Usage chart — two modes, five ranges
A mini-chart you can flip between two views with a Spend $ | Quota % toggle:
Spend $ — stacked area of cost-equivalent by whatever model families are in your data
(each with its own color), with a running Total $X.XX and a legend showing only the series
that have data.
Quota % — your real utilization over time, with a 5h | 7d window selector that only
appears in this mode, plus faint threshold gridlines at your warn / critical levels so you
can see exactly when the line crossed into amber or red.
Both modes annotate the peak with a labeled dot (Peak $X.XX / Peak X%).
Ranges: 1H / 5H / 24H / 7D / 30D (always the most recent window up to now).

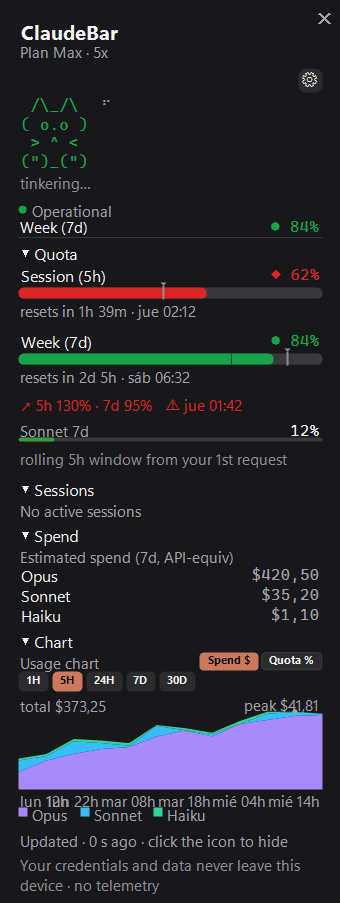

Live sessions & the mascot
Opt in, and ClaudeBar sees — in real time — what every open Claude Code session is doing, drawn
through a little ASCII cat that lives in the panel header. Full mechanics in
Live sessions & hooks; the short version:
A 6-phase state machine (idle · working · waiting for approval · waiting for input ·
compacting · ended) drives the cat's face, mood color, and the tray attention dot. The
idle cat now stays clearly legible in every theme (it used to wash out to ~2.3:1 contrast).
Playful, rotating, localized verbs under the cat (thinking…, cooking…, your turn…),
a natural blink (jittered, not metronomic), a clean spinner arc while it works (a
GDI+ sweep, not a few dead grey pixels), an attention bounce when a session needs you, and a

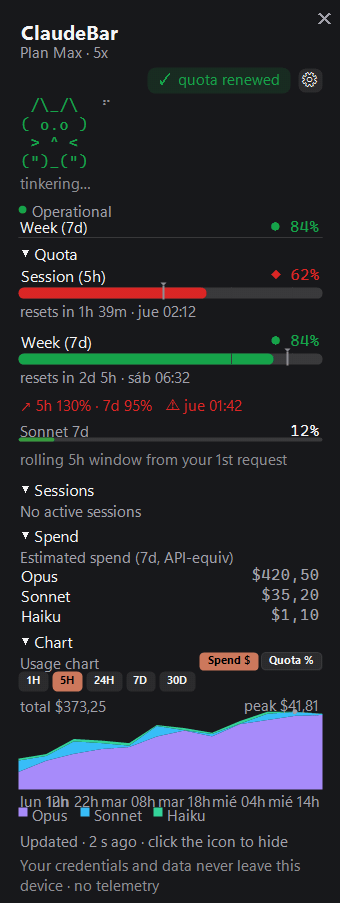

reset celebration — a ✓ quota renewed chip in the brand accent + a happy bounce — when your
quota renews.
Toggle it on/off with Show mascot (a compact 4-line kitty, by design).
> With the mascot visible but live sessions off, you'll still see an ambient idle cat — it
> just doesn't come alive until the hooks are installed.
Proactive notifications
Windows toasts from the tray icon, all under one Notifications master switch:
Milestone alerts — 🟢🟡🟠🔴 when your usage crosses up through 25 / 50 / 75 / 95%
(each toggleable). Only fires on an upward crossing — a 40→80 jump notifies once (the 75) —
and re-arms after a reset. The first read just seeds state, so it never spams on launch.
Pace alerts — ⚠ Quota pace: if your burn-rate projects running out of a window before
its reset, you get the window (session 5h / weekly 7d) and the estimated run-out time. Once
per episode; re-arms when the projection clears.
Live-session toasts — Claude is waiting for your OK in {project} / Claude finished in {project} when a session changes, with mute-when-terminal-focused (on by default): if that
session's window is already in the foreground, ClaudeBar stays quiet — you're already looking.
Look & feel

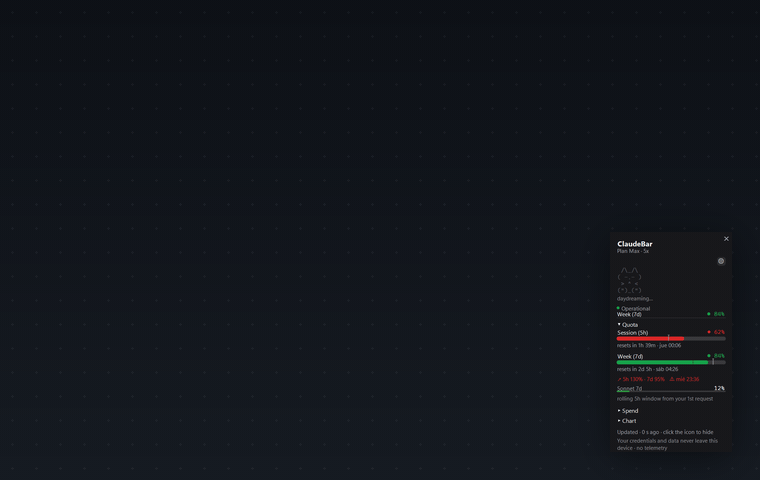

Drag it anywhere — grab any empty part of the panel and drop it where you like; it remembers
the spot. Or pick a preset corner/center in Settings.

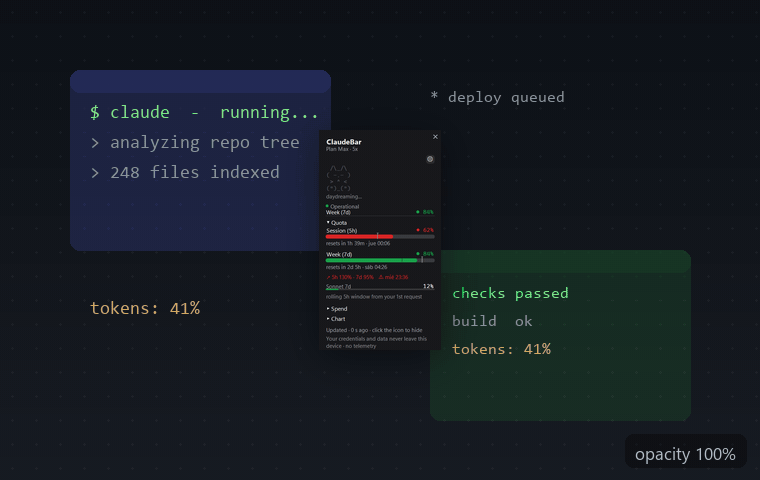

Adjustable opacity, Pinned (won't auto-close on click-out), and Always on top.
Themes — System / Dark / Light / CLI, plus import a .itermcolors palette.
9 languages — System + English, Español, Nederlands, Français, Deutsch, 日本語, 한국어,
繁體中文 (both theme and language default to your Windows settings).
Microinteractions, reduce-motion, and ~0 CPU at rest
The panel fades and staggers in, bars and numbers tween to their targets (color snaps so
it never flickers), rows light up on hover, and a quota reset gets a little flash.
Two things matter for an app that runs all day:
Reduce motion — one switch collapses every animation (fade, stagger, tween, hover,
bounce, spinner, celebration) to its static final state. It's a real accessibility/preference
toggle, off by default, and it does not auto-follow the OS setting (your choice, not
Windows').
~0 CPU when hidden — the animation engine only spends cycles when the panel is visible and
something is actually moving (~33 ms tick). Panel visible but idle? ~1 s tick, just for the
reset countdown. Panel hidden? The timer stops entirely. No background animation tax for a
24/7 tray app.
Real quota (primary).GET https://api.anthropic.com/api/oauth/usage with your local
OAuth token. Returns five_hour / seven_day (plus seven_day_opus / seven_day_sonnet)
with utilization (%) and resets_at — the same limits Claude Code respects — and a flag
for whether paid extra usage is enabled. On HTTP 429 it backs off (honoring Retry-After,
else ~300s) and serves the last good value instead of hammering the API.
Real-% history. The usage API only gives a snapshot, so each successful poll is sampled
into SQLite (%APPDATA%\ClaudeBarWin\history.db, throttled to once/60s, pruned after 40 days).
This is the only source of your Quota % chart line and the pace ETA — so it starts
empty and fills in as the app runs.
Pace + ETA. Pace = used% vs the ideal for how much of the window has elapsed (works from
minute one). The ETA extrapolates from the recent slope of your % history, ignoring the drops
caused by window resets.
Token refresh — only when expired. If the token has lapsed, ClaudeBar refreshes it itself
(POST platform.claude.com/v1/oauth/token) and rewrites ~/.claude/.credentials.jsonpreserving everything else, with a headless claude -p . as fallback. It only acts when
the token is already expired, so it never fights Claude Code for the token.
Service health.GET status.claude.com/api/v2/status.json (public, no auth), cached ~2 min.
Estimated spend (secondary). Parses your local .jsonl transcripts (the ccusage method)
into a per-model USD figure using list prices from models.dev (input /
output / cache-write / cache-read per 1M tokens). Prices are not hard-coded: a fresh copy is
cached at %APPDATA%\ClaudeBarWin\models-pricing.json (refreshed at most weekly), an embedded
offline snapshot ships in the binary so it works with no network ever, and the optional
"Update rates online" toggle (Settings → System, off-able) is the only thing that touches
models.dev — with an anonymous GET that sends nothing of yours (no query, no identifying
headers, just the product User-Agent). Model families are derived from the transcript ids, so
a new family (Fable, Mythos, …) is priced and shown the moment it appears; a model with no
price in any source shows — no rate and is excluded from the total (never faked at $0). It's
an API-equivalent estimate, not your subscription's charge — labeled API-equiv everywhere.
Privacy — and you can verify it
The token is used only to read your own usage, and its only destination is Anthropic's own
API. It is never stored, logged, or sent anywhere else, and ClaudeBar never persists it.
Zero telemetry. Nothing about you leaves your machine.
Pricing fetch is anonymous and opt-out. The only other outbound call is the optional
models.dev price refresh — a plain GET of a public list with no usage data, no query, and no
identifying headers. Turn it off and ClaudeBar never opens it (the embedded snapshot keeps spend
working offline).
The plan label (Max · 5x, Pro, …) is read only from non-secret fields of the
credentials file (subscriptionType / rateLimitTier) — the token is never touched for it.
The privacy seal is rendered inside the panel itself — it's a statement you can read in the
app, not just a promise in this README.
Install
Option 1 — Download the installer (recommended)
Grab ClaudeBarWin-Setup-x.y.z.exe from the
latest release and run it.
Per-user, no admin (installs to %LOCALAPPDATA%\Programs\ClaudeBarWin), self-contained —
no .NET needed, built with Inno Setup.
The icon lands in the system tray. On Windows 11 a new icon hides in the ^ overflow —
drag it onto the taskbar to pin it.
Updates install themselves (see below), or trigger one from the right-click menu →
Check for updates.
> SmartScreen may warn because the .exe is unsigned → More info → Run anyway.
Option 2 — winget
winget install Yovancas.ClaudeBarWin
Available once the manifest is merged into the winget community repo. Heads-up: the published
manifest currently still declares an old 0.1.0 and is listed as portable — until it's bumped,
the installer download (Option 1) is the reliable route.
Auto-update is silent and safe: a background check on launch and every 6h against an
Ed25519-signed appcast on GitHub (the private signing key is never in the repo). When you
accept, it downloads the signed installer, verifies the signature, swaps the running .exe, and
relaunches.
Start with Windows — Settings → System → Start with Windows. It creates/removes a shortcut
in the Startup folder — no registry, no admin, fully reversible.
Requirements
Windows 10 / 11 (x64).
Claude Code (CLI or app) installed and signed in — ClaudeBar reads your local OAuth token
(~/.claude/.credentials.json) and transcripts to show real quota and estimate spend. Nothing
leaves your machine. Without local credentials it shows not signed in and there's no quota to
display.
Nothing else to run the release build. To build from source: .NET SDK 9 (a user-local
install in %USERPROFILE%\.dotnet works, no admin).
Configuration
Open the dashboard and click the ⚙ (top-right) — every setting lives on one grouped
screen. The panel never eats your display: it caps at ~65% of the screen height and the content
scrolls with the mouse wheel. Master rows gate their dependents: turn Notifications off and
pace/milestones grey out; turn Live sessions off and the mascot/suppress controls grey out.
Group
What's in it
Panel content
Estimated spend · Service status · Usage chart
Live sessions
master Enabled (installs/removes Claude Code hooks) → Show mascot · Suppress when focused
Theme System/Dark/Light/CLI · Position · Opacity · Pinned · Always on top · Reduce motion
System
Start with Windows · Update rates online (models.dev, opt-out) · Language (System + 8)
About
Version · Import .itermcolors…
Two actions are sensitive — they prompt for confirmation and back things up first: enabling
live sessions (it writes ~/.claude/settings.json) and importing a theme. The right-click
menu (tray icon or panel) stays minimal: Dashboard · Settings · Live sessions · Check for updates
· Exit. Settings persist to %APPDATA%\ClaudeBarWin\config.json.
Live sessions & hooks
> Opt-in and off by default. This is the only feature that touches your Claude Code config,
> so it's the only one ClaudeBar asks permission for.
Turn it on and ClaudeBar gets a real-time view of every open Claude Code session — project
name and current phase — which drives the mascot and the tray attention dot.
How it works. Claude Code fires a hook → a tiny claudebar-hook.ps1 reads the event from
stdin → forwards it as one JSON line over a local named pipe (\\.\pipe\claudebar) → ClaudeBar
updates the mascot and the session list. The hook script is fire-and-forget: if ClaudeBar
isn't open or the pipe doesn't answer in 200 ms, it exits silently (exit 0) and never blocks
or breaks your session. Multiple sessions are supported at once; project names come from each
session's working directory; sessions prune after 10 minutes of silence.
The 6 phases (each picks the cat's face, color, and whether you get a toast):
The cat is hand-drawn ASCII (clean-room), a compact 4-line kitty:
/\_/\
( o.o )
> ^ <
(")_(")
Under the hood the mascot is fussier than it looks: jittered blink (slow when idle ~2.6s,
urgent ~0.5s when you're needed), a spinner arc that sweeps (a GDI+ arc spinning once every
~900 ms) only while it works, playful rotating verbs localized to your language, a mood with
hysteresis (Alert→amber, Happy→green) so it doesn't flicker, an attention bounce (a 3-hop
OutBack boing every ~3.2s while a session waits), and a reset celebration (✓ quota renewed
chip in the brand accent + Happy cat) when a window renews. All of it is deterministic and respects
Reduce motion.
Is it safe? Yes — here's exactly what it does
Enabling/disabling live sessions edits ~/.claude/settings.json, which may be in use by sessions
running 24/7. So ClaudeBar is careful:
Confirmation first, with the dialog's default button on No (an accidental Enter does
nothing).
Timestamped backup before any write: settings.json.claudebar-bak-YYYYMMDD-HHmmss (the
confirmation tells you the path).
Idempotent merge — it hooks 10 events (UserPromptSubmit, PreToolUse, PostToolUse,
PermissionRequest, Notification, Stop, SubagentStop, SessionStart, SessionEnd,
PreCompact), never duplicates entries, and never touches your other hooks (it tags its own
by script name).
Clean uninstall — removes only ClaudeBar's entries (drops the key if an event is left
empty), backs up again, deletes the script, and stops the pipe. Your other hooks stay byte-identical.
Honest gotchas: it runs a PowerShell per hook event (lightweight, but frequent); events are
lost if ClaudeBar isn't running (they aren't queued); and the focus-mute uses a process-tree
heuristic that can occasionally fall back to "not focused" (so you'd get the toast anyway).
Build from source
Requires .NET SDK 9 (a user-local install in %USERPROFILE%\.dotnet works, no admin):
git clone https://github.com/Yovancas/claudebar-win.git
cd claudebar-win
.\run.ps1 # build + run (debug)
.\run.ps1 publish # self-contained single-file publish\ClaudeBarWin.exe (no .NET needed to run)
scripts/release.ps1 runs the full pipeline — version bump → publish → Inno installer →
Ed25519-signed appcast → optional GitHub release. Publishing is gated behind -Publish
(otherwise it's a local dry-run that uploads nothing), and the Ed25519 private key never lives in
the repo.
Useful commands
These are developer/diagnostic utilities; they all use synthetic data and never touch your
real quota.
Dump README GIF frame sequences to %TEMP%\claudebar-gif (6 folders: apertura/ · mascota/ · hover/ · celebracion/ · ajustes/ · bandeja/), then assemble with ffmpeg (see Building the GIFs). The settled "hold" frame of the apertura/ sequence is the full expanded panel used for the dashboard-full hero.
ClaudeBarWin.exe --notify-demo
Fire the four milestone toasts 🟢🟡🟠🔴 in sequence, then exit
ClaudeBarWin.exe --db-test
Smoke-test the SQLite history store
ClaudeBarWin.exe --dump-menu
Print the right-click menu structure
ClaudeBarWin.exe --hook-test
Drive the live-session pipe with a fake event sequence (needs a running instance with live sessions on)
State lives under %APPDATA%\ClaudeBarWin\: config.json (settings), history.db (real-%
history), last-state.json (last good reading, for instant startup and offline).
Building the GIFs
--render-gif dumps numbered frame_###.png sequences (one folder per animation:
apertura/ · mascota/ · hover/ · celebracion/ · ajustes/ · bandeja/) under
%TEMP%\claudebar-gif. Turn each folder into a looping .gif with ffmpeg (palette pass for clean
colors):
Map the folders to their GIFs: apertura/ → assets/f3-apertura.gif, mascota/ →
assets/f3-mascota.gif, hover/ → assets/f3-hover.gif, celebracion/ →
assets/f3-celebracion.gif, ajustes/ → assets/settings-scroll.gif, bandeja/ →
assets/tray-cycle.gif. The dashboard-full hero is not its own command — grab a single
settled "hold" frame from the end of apertura/ (the full expanded panel: mascot band + quota
bars + per-model spend + chart) and save it as assets/dashboard-full.png.
The move.gif / opacity.gif demos don't come from the app — they're synthetic. Generate
their frames with python scripts/marketing-gifs.py (Pillow), then assemble them into
assets/move.gif and assets/opacity.gif with the same ffmpeg palette pass shown above.
Uninstall
Quit from the tray menu (Exit), then remove the app (installer: Apps → uninstall, or delete
the %LOCALAPPDATA%\Programs\ClaudeBarWin folder; portable: delete ClaudeBarWin.exe).
Your data survives a normal uninstall by design — config + history live in
%APPDATA%\ClaudeBarWin\, not in the app folder. To purge everything, delete that folder too.
If you enabled Start with Windows, untick it first (or remove the shortcut from shell:startup).
Installed via winget: winget uninstall Yovancas.ClaudeBarWin.
Notes & FAQ
Windows 11 tray overflow — a fresh icon goes to the ^ overflow; drag it onto the taskbar to pin it.
"Stale" / dimmed icon — the data is older than 3× your refresh interval (offline, a 429
cooldown, or just no fresh read). The icon dims and the tooltip says so rather than showing
an old number as if it were live. The ·old / ! states are in the
tray-badges strip above.
claude -p . refresh only fires if the token is expired; with Claude Code running it
stays fresh on its own and this rarely runs.
extra usage (paid overflow) is read from the API and surfaced in --report (and the
cached last-state.json) — it's a diagnostic flag, not shown in the panel UI.
Real vs estimated, one more time — the 5h/7d % is real (Anthropic's own figure); the
$ spend is a local API-equivalent estimate, not your subscription bill.
SmartScreen warning on first run is expected (the .exe is unsigned).
