winget install --id=ZhoelSherk.VALVET -e Validator And Line-Verified Export Tool. Load BOM and PnP files, clean component names, cross-check, merge, and export. The Windows package is a PyInstaller onedir zip (Qt DLLs next to VALVET.exe). ACE ODBC, pythonocc, and repo example fixtures are not bundled.
English | Русский
Desktop app (PySide6) for SMT prep: open a BOM and a pick-and-place file, clean part names, check they match, merge, export for the line.
Repo: zhoel-sherk/VALVET. Own project (not a GitHub fork of marmidr/boomer). BETA — Hanwha MDB edit, PCB Preview, and Step 3D are still rough.

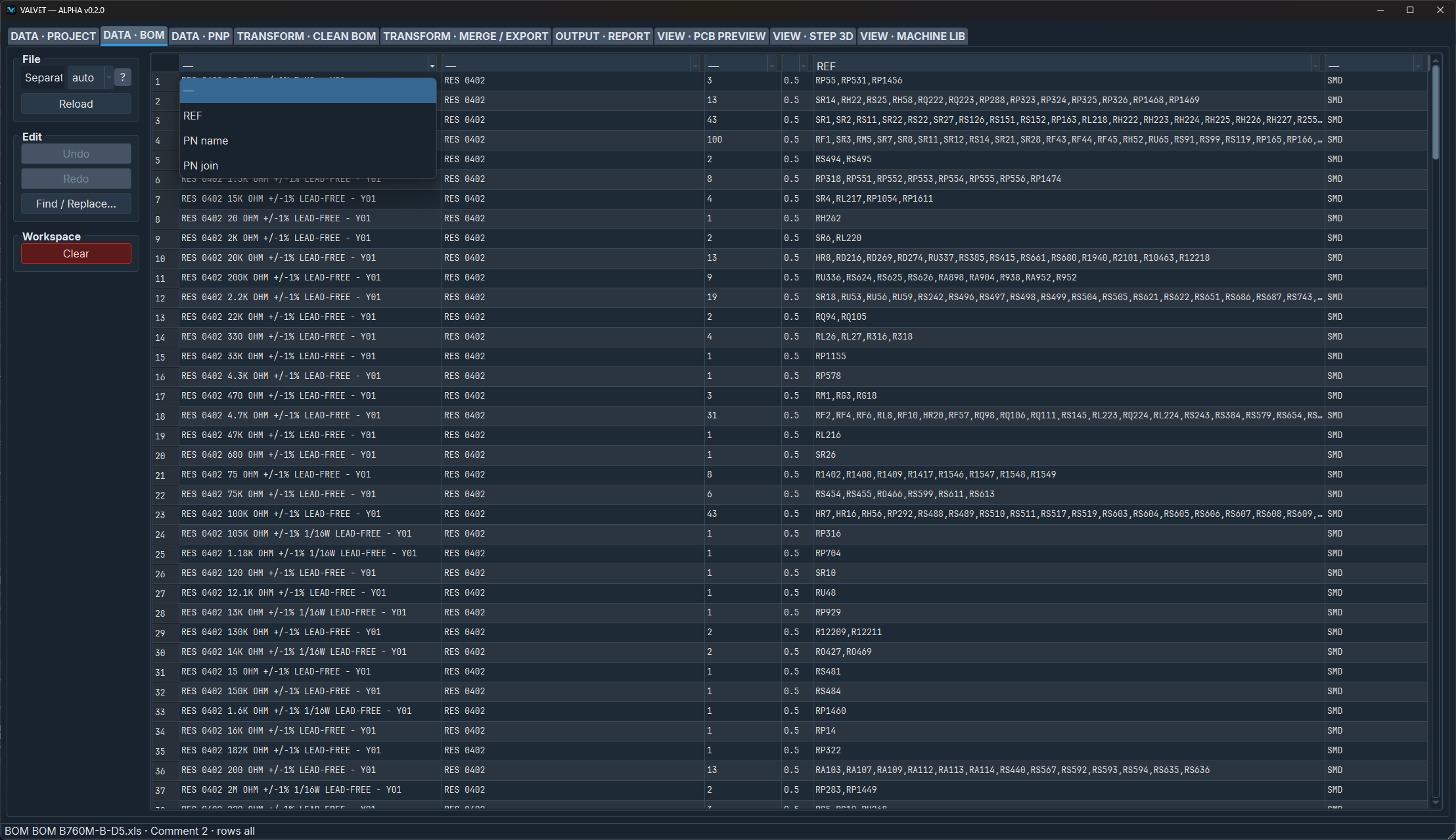

DATA — BOM

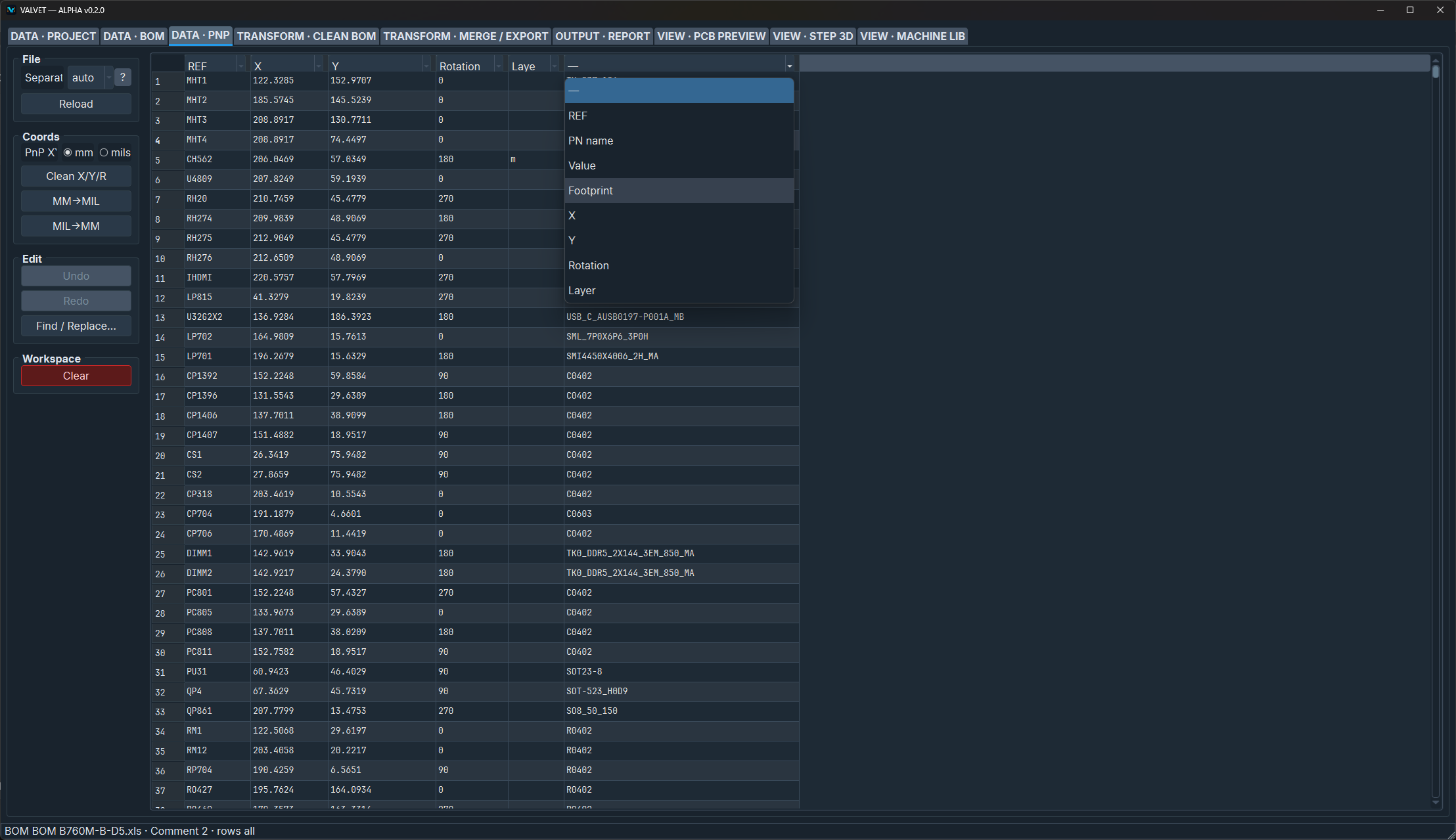

DATA — PnP

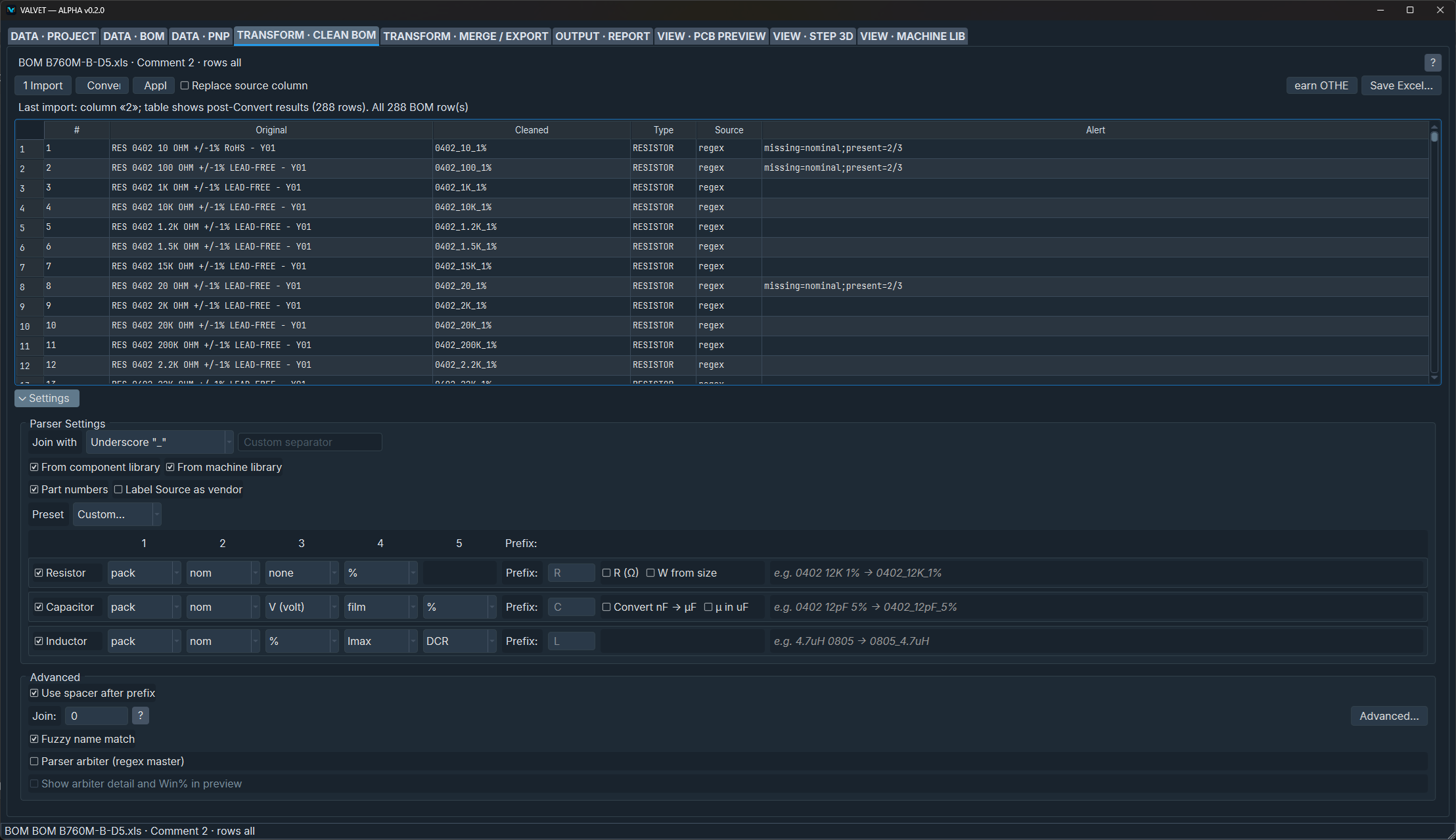

TRANSFORM — Clean BOM

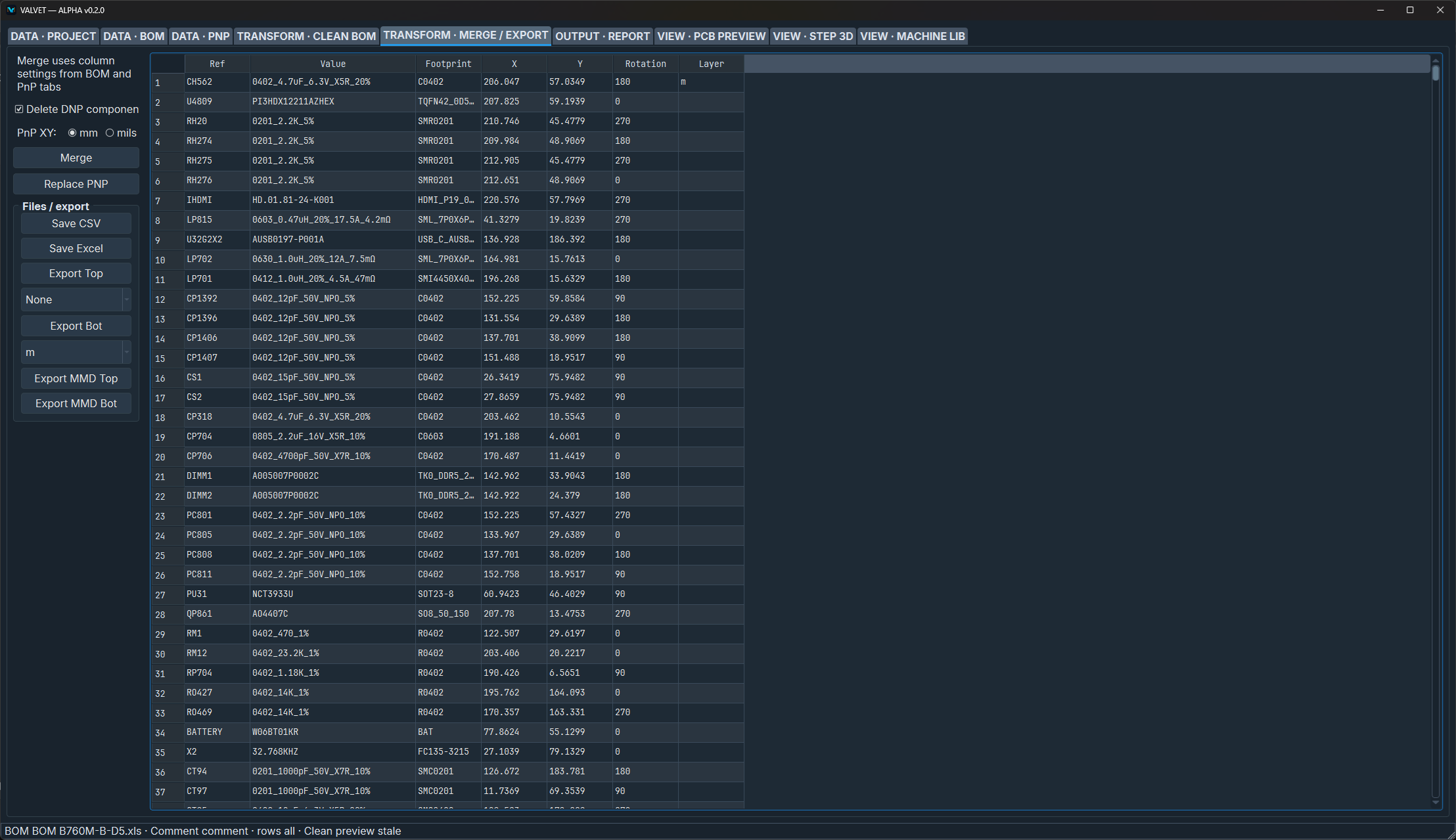

TRANSFORM — Merge / Export

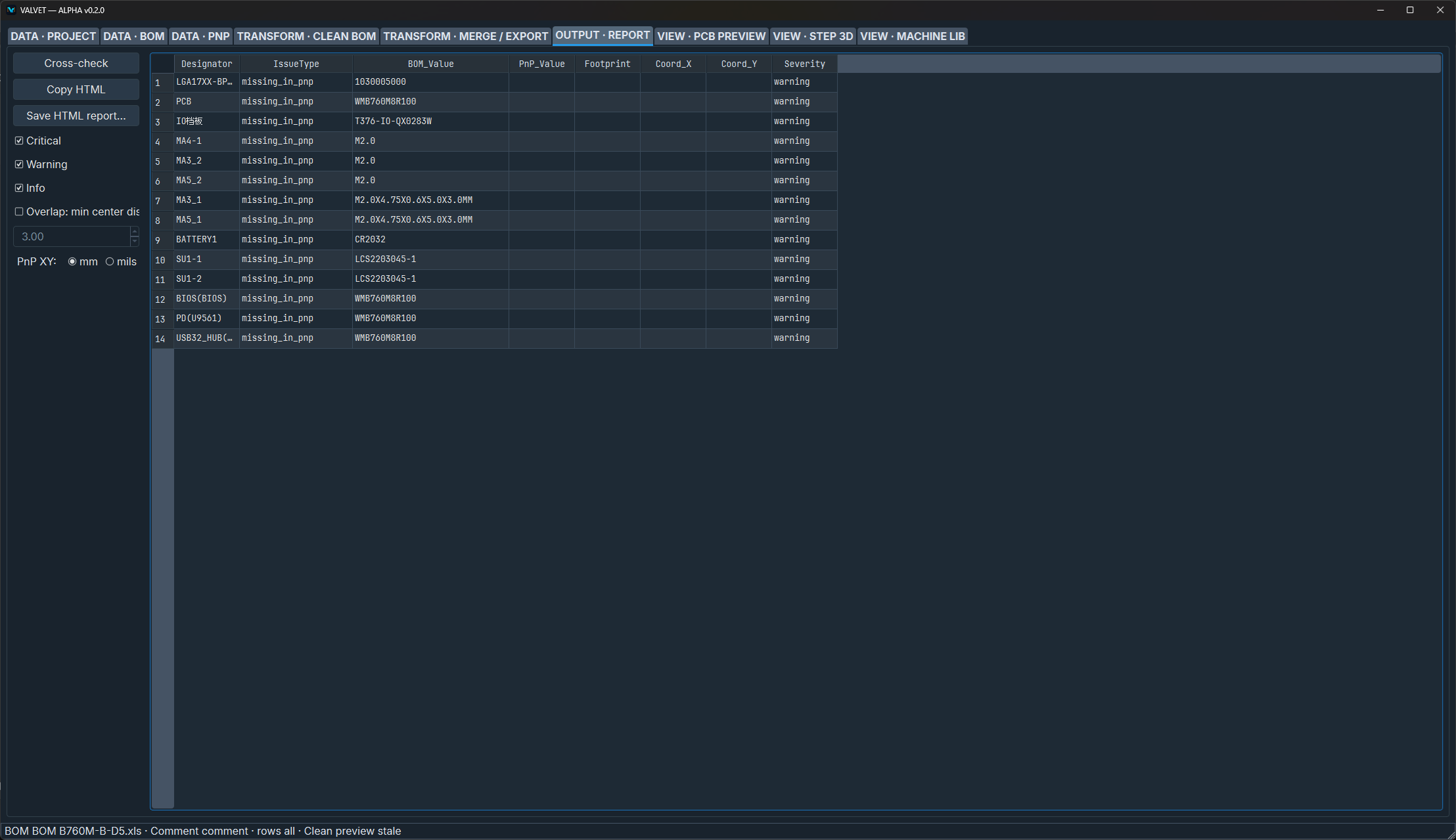

OUTPUT — Report

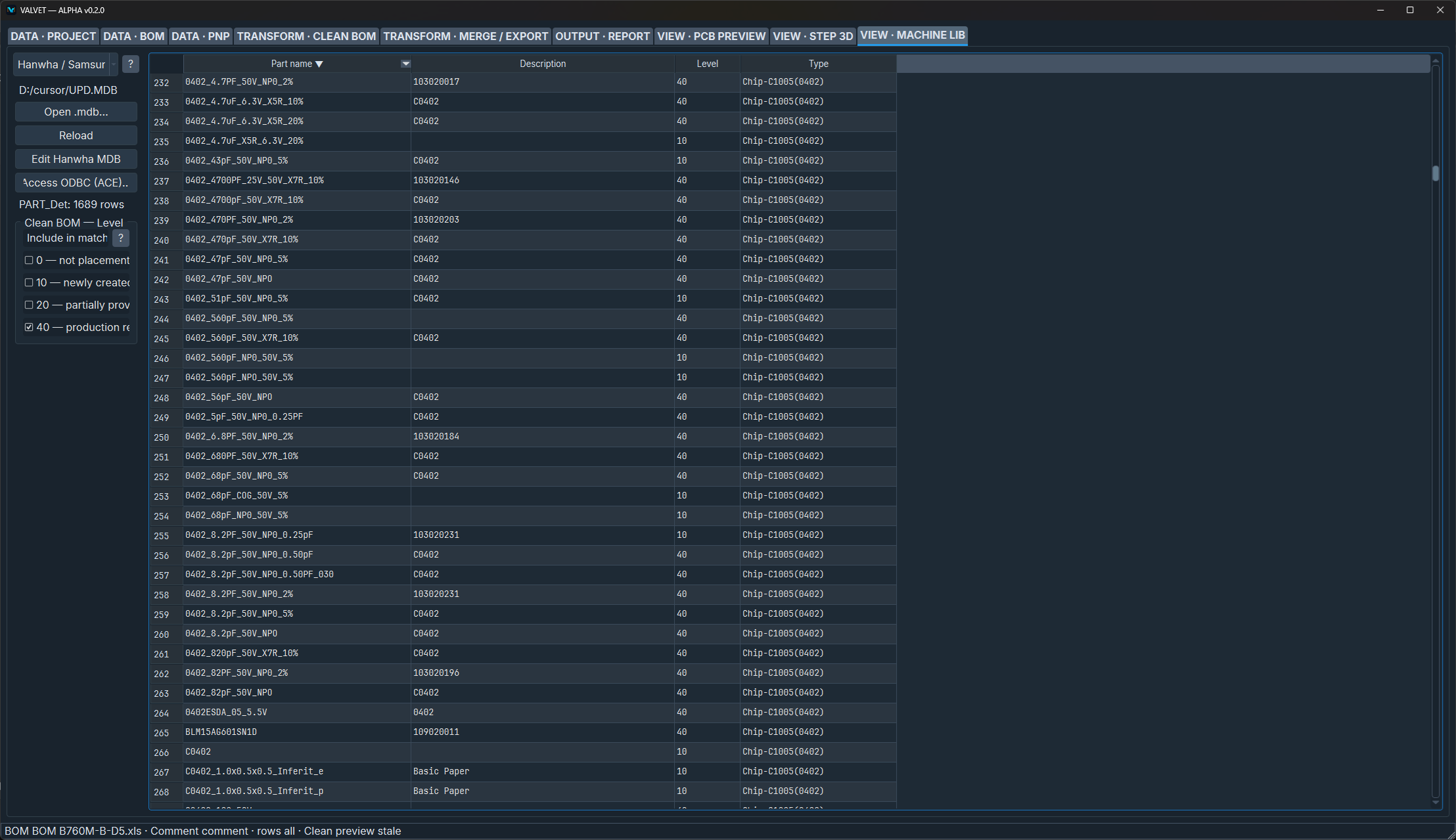

VIEW — Machine lib
VALVET\VALVET.exe (keep the _internal folder next to the exe).Community WinGet id ZhoelSherk.VALVET is submitted; use the zip until that PR is merged. The zip has no examples/, no Access ODBC, no pythonocc.
Python 3.10+. In the clone root (same folder as requirements.txt):
python -m venv .venv
.\.venv\Scripts\Activate.ps1
python -m pip install -r requirements.txt
$env:PYTHONPATH = "src"
python src/main.py
Linux / macOS:
python3 -m venv .venv
source .venv/bin/activate
python -m pip install -r requirements.txt
PYTHONPATH=src python src/main.py
--debug writes logs like the Project tab “Debug logs” checkbox. Optional fonts: python tools/fetch_inter.py and python tools/fetch_jetbrains_mono.py. Tests: doc/info/TESTING.md.
Files in examples/example1/.
Kaseta_2v1 BOM_results.txt. In the header combos set REF and Comment (part name). Use PnJoin only if a second column should be glued onto the name after Clean.Pick Place for Kaseta2v1(Standard).csv. Map REF, X, Y, Rotation, Layer (and Comment / footprint if present).Other sample files:
| Folder | What |
|---|---|
examples/example2/ | BOM .csv + PnP .txt |
examples/example3/ | PnP .csv |
examples/mmd/ | Mercury-style .mmd export goldens |
examples/gerber_example3/ | Gerbers for VIEW — PCB Preview |
examples/UPD.MDB | Hanwha shop DB for VIEW — Machine lib (Windows: ACE ODBC for in-place save) |
components.txt in the repo root is the sample / user part list (override with env BOOMER_COMPONENTS_TXT).
| Group | Tab | Does |
|---|---|---|
| DATA | Project | Profile, UI language (lang/), session |
| DATA | BOM / PnP | Load .xls .xlsx .csv .ods .txt .tab, map columns, edit, autosave |
| TRANSFORM | Clean BOM | R/C/L decode + regex; vendor PNs (Yageo, Murata, …) |
| TRANSFORM | Merge / Export | Join BOM onto PnP; Top/Bot / .mmd |
| OUTPUT | Report | BOM vs PnP checks |
| VIEW | PCB Preview | Gerber + PnP overlay (WIP) |
| VIEW | Step 3D | .stp / .step — extra packages, see below |
| VIEW | Machine lib | Hanwha .mdb (WIP); Yamaha later |
Settings live under organization VALVET. Profiles save mapping/options, not which files were open. Window size and last Browse folder are global.
Optional Step 3D: pip install -r requirements-step3d.txt, tessellation requirements-step3d-occ.txt (conda-forge pythonocc-core on Windows). Or set an external STEP→OBJ command in Debug.
No-Qt CLI: pip install -r requirements-cli.txt then PYTHONPATH=src python -m cli --help.
Roadmap: doc/TODO.md. Frozen Windows build: doc/info/PACKAGING_WINDOWS.md. License: MIT.
