hvtop

hvtop is a TUI prototype for monitoring Windows and Hyper-V hosts, VMs when Hyper-V is present, failover clusters, CSV/storage, physical disks, network, and recent events. It is shaped like htop or esxtop, but with fast drill-down views and a small rolling history buffer for max/spike visibility.

The native implementation is written in C# with native Windows counters and no PowerShell in the hot path.

Screenshots

Click any thumbnail to open the full-size image.

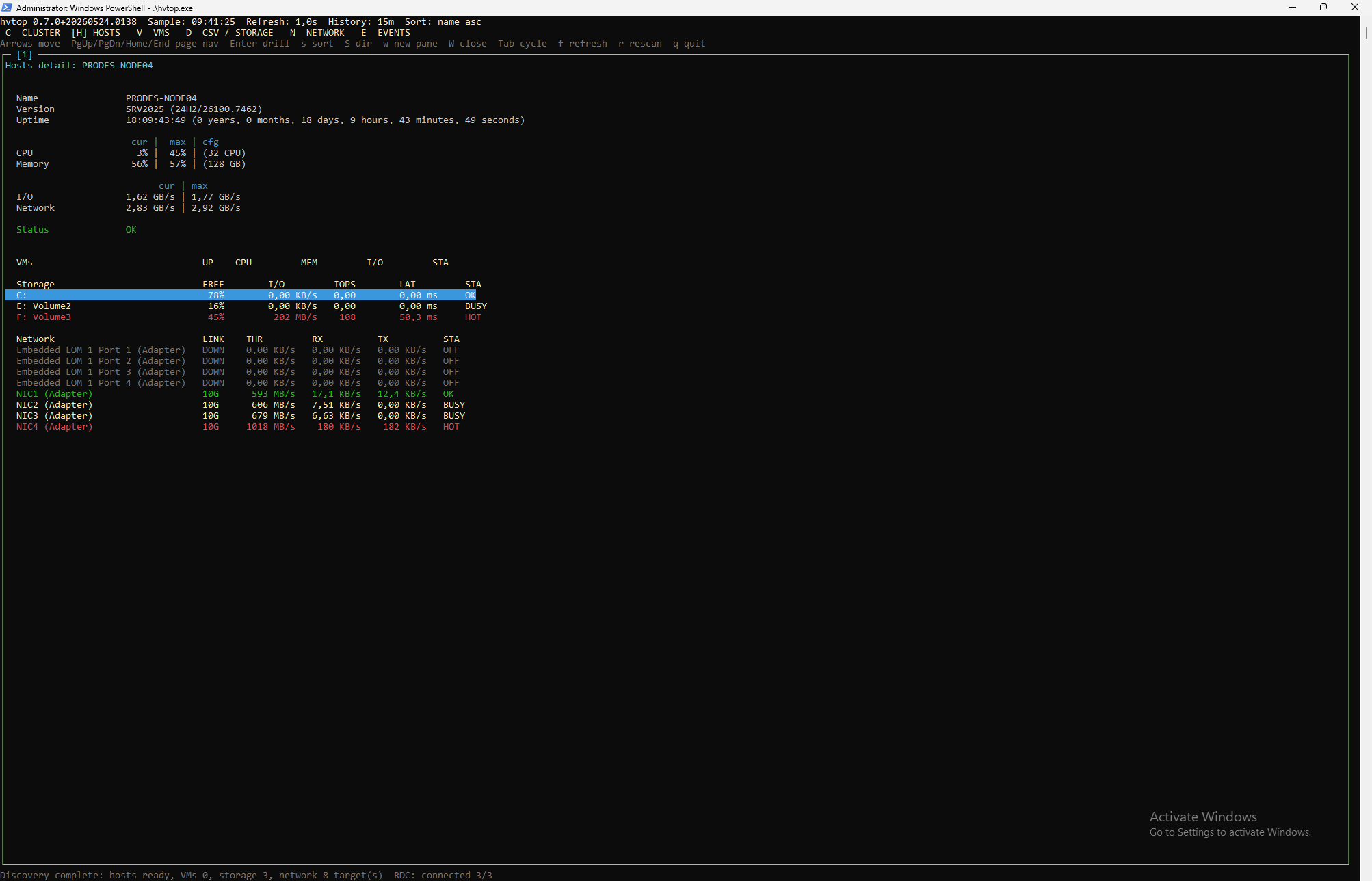

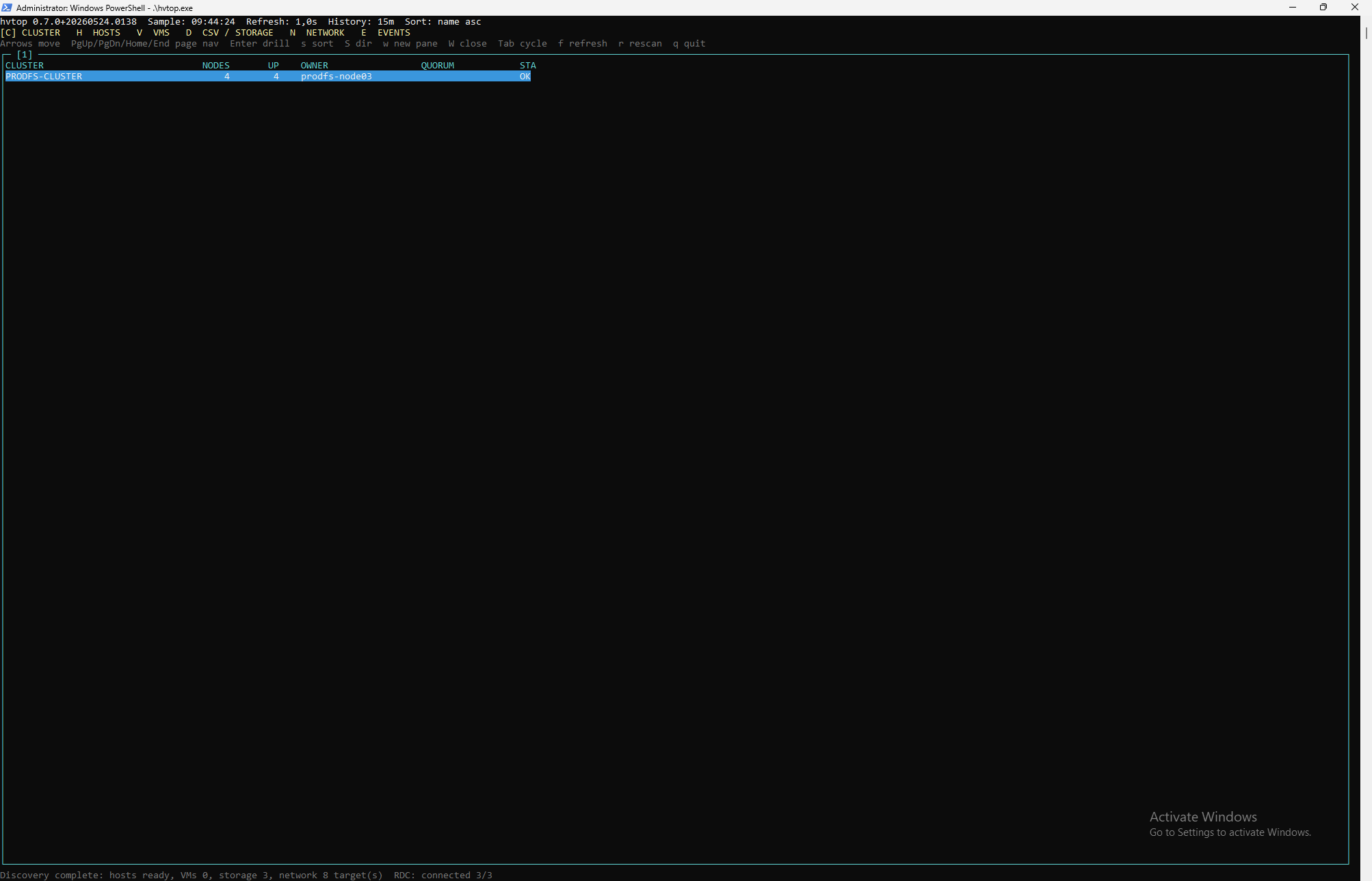

Cluster	Cluster Detail

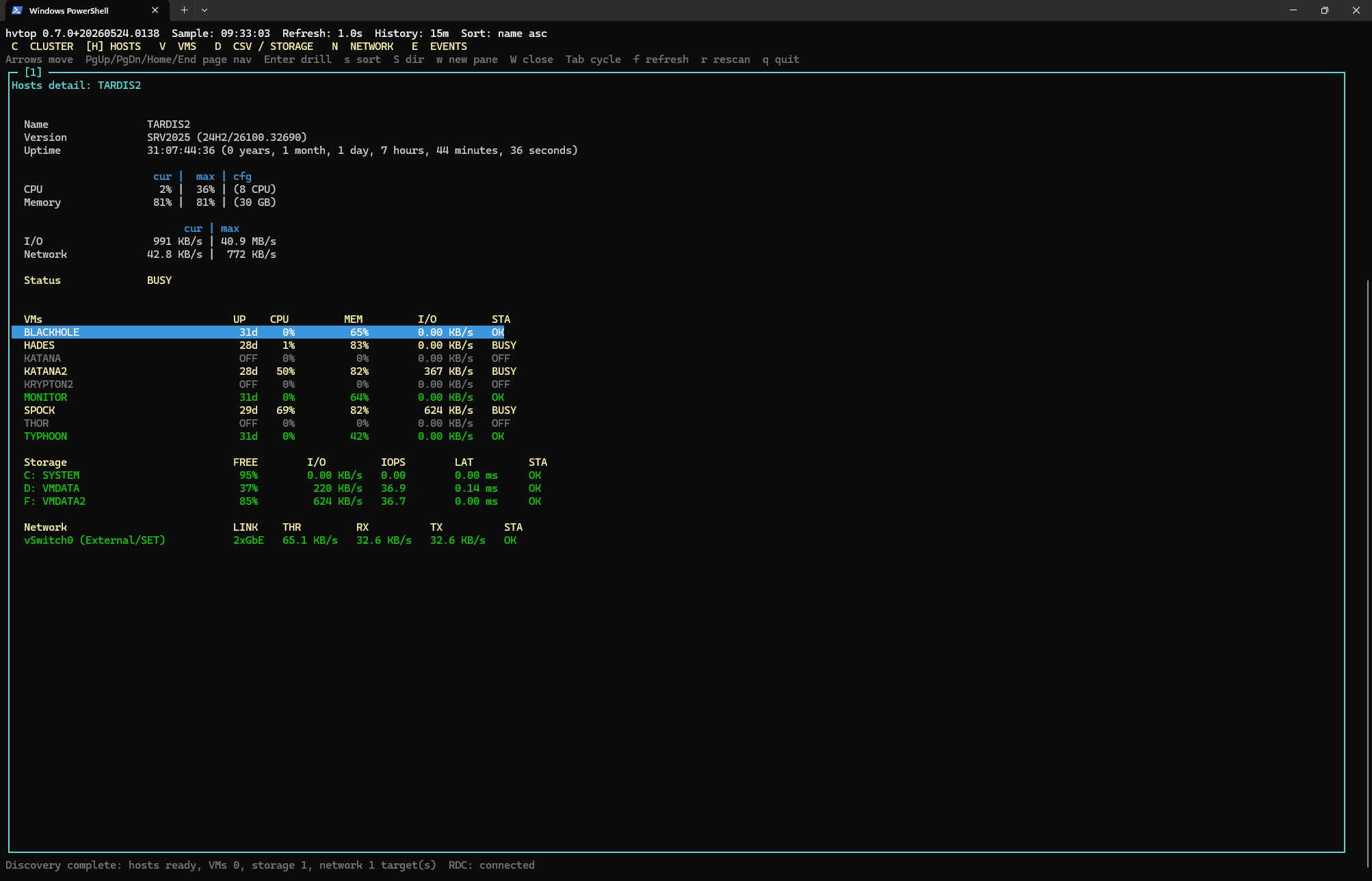

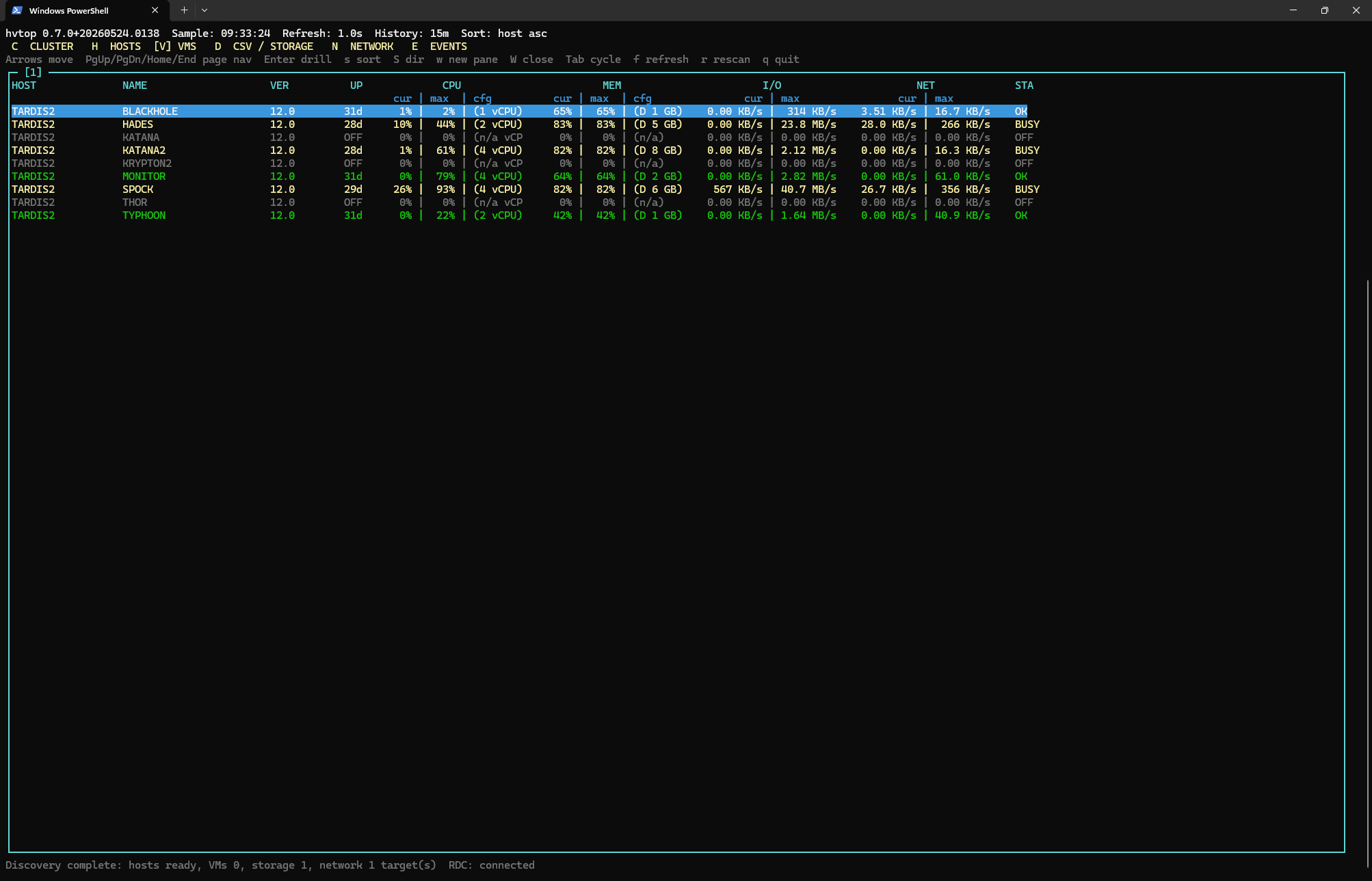

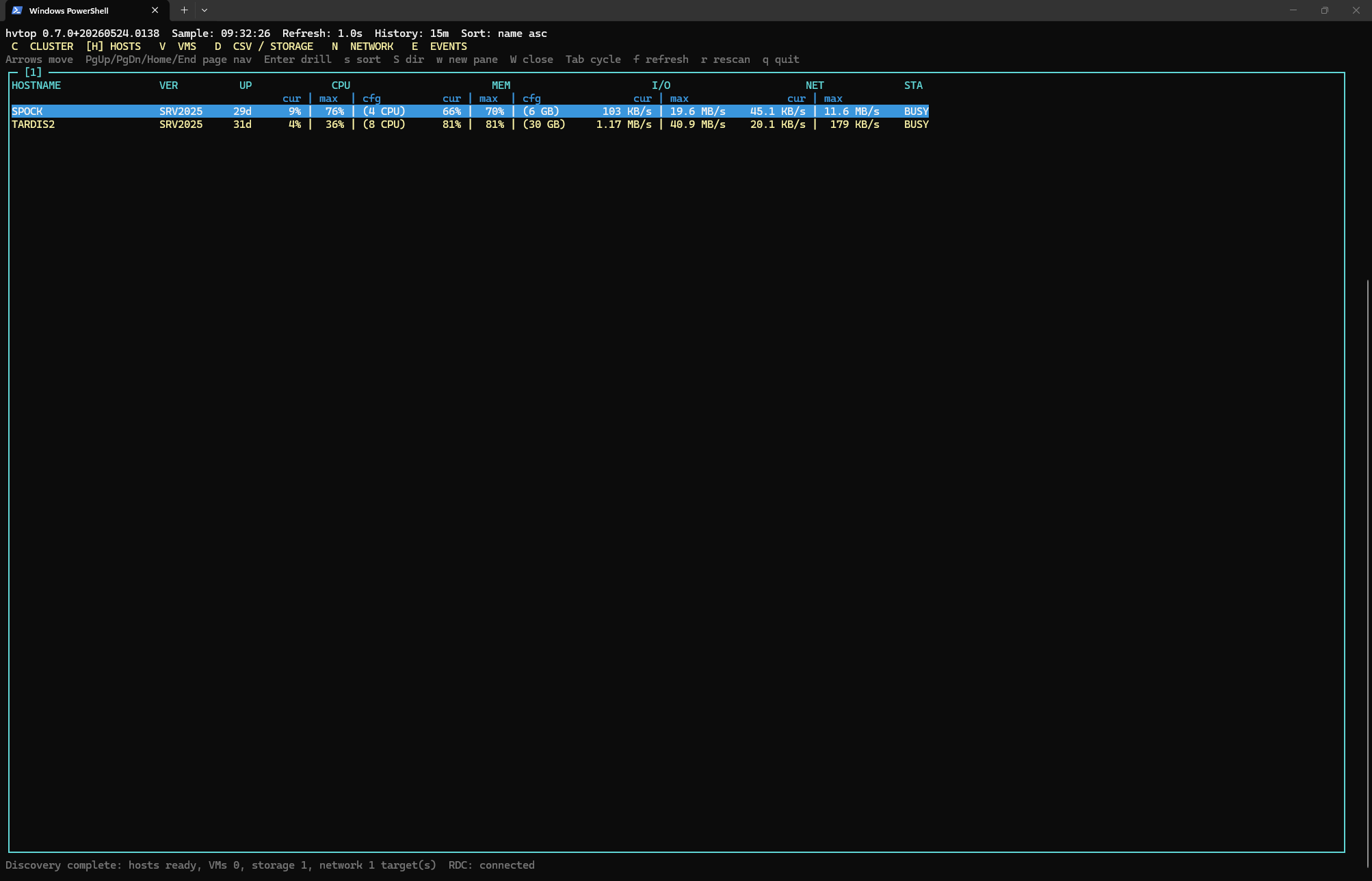

Hosts	Host Detail	VMs

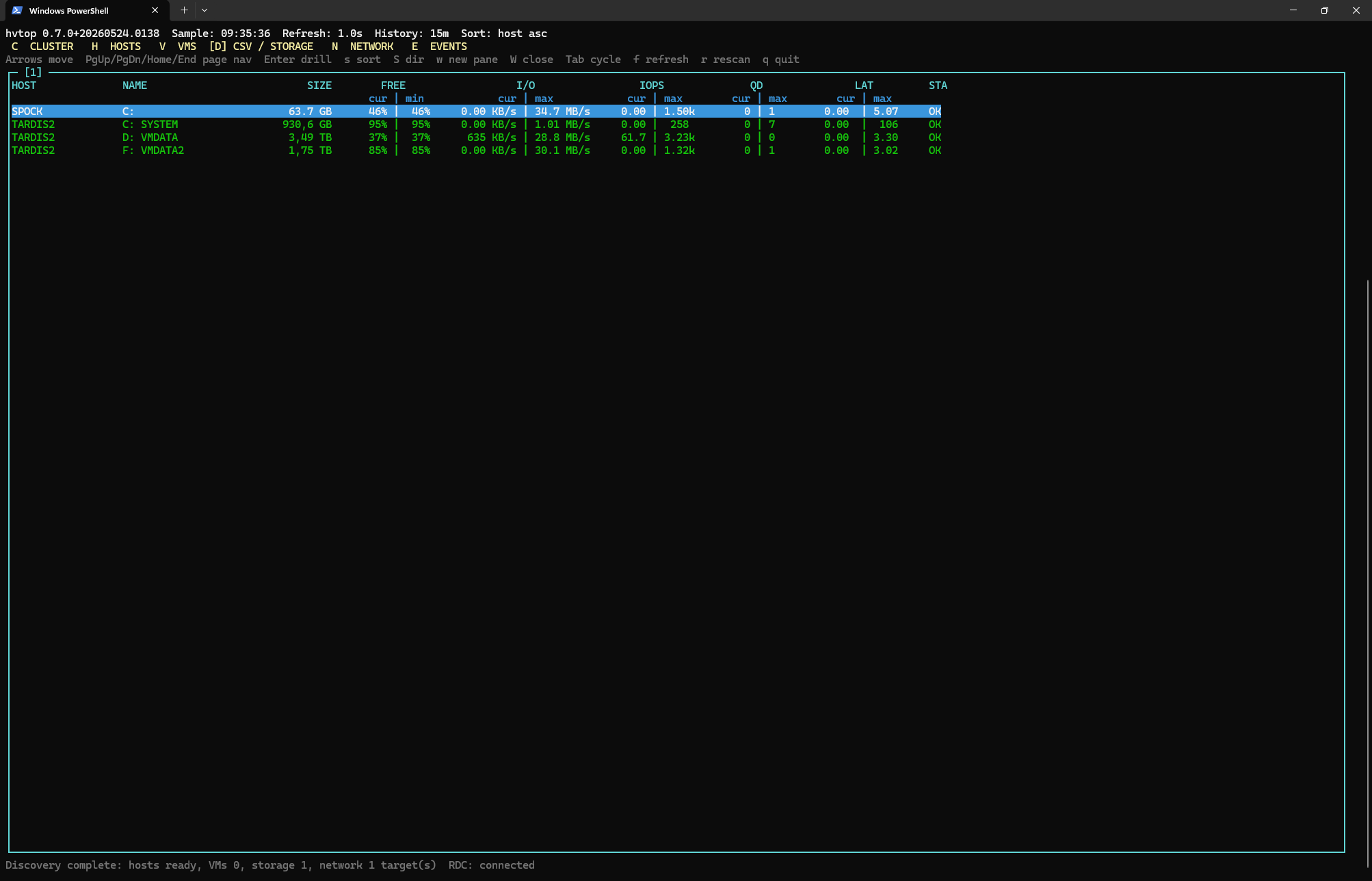

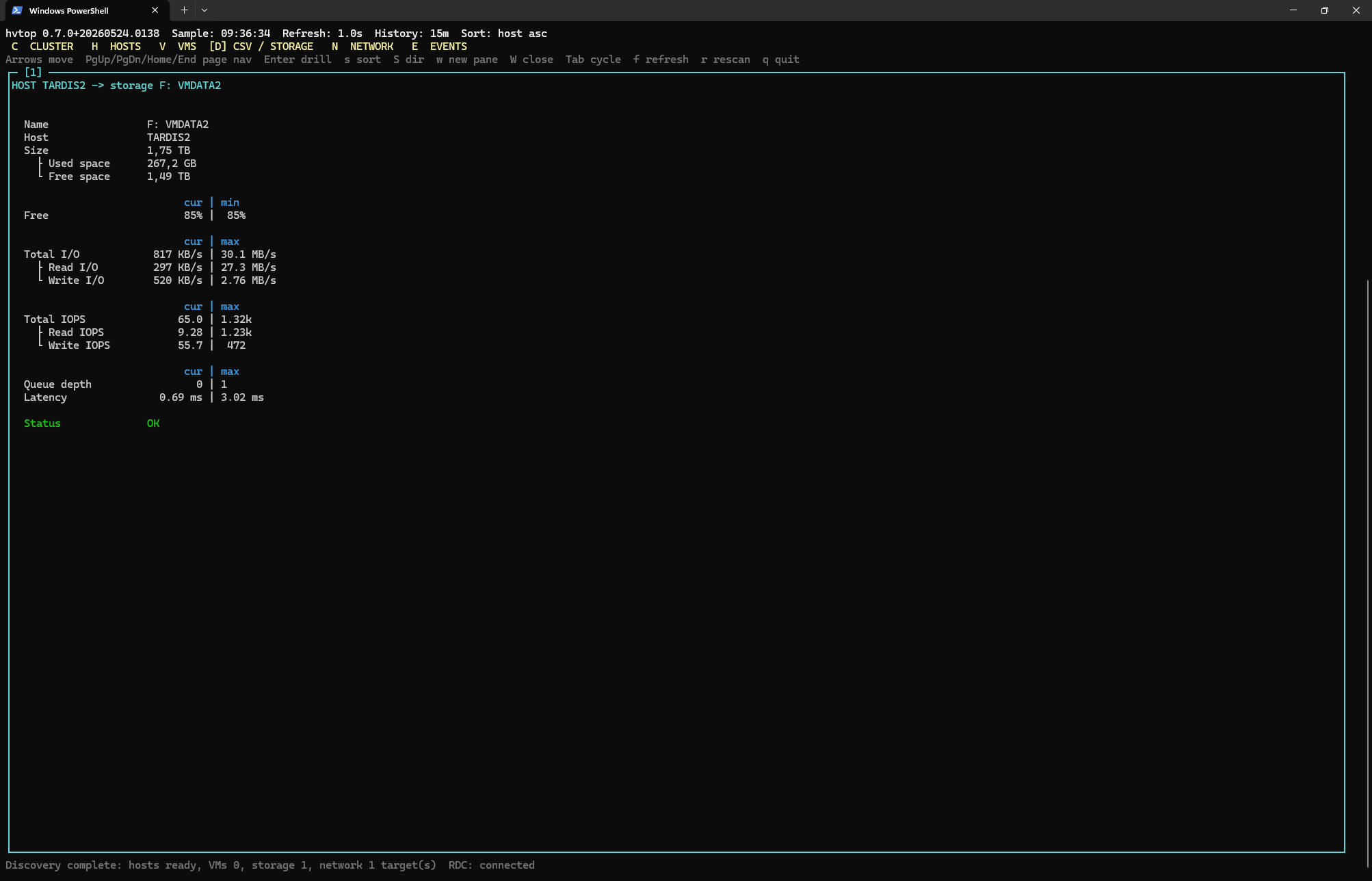

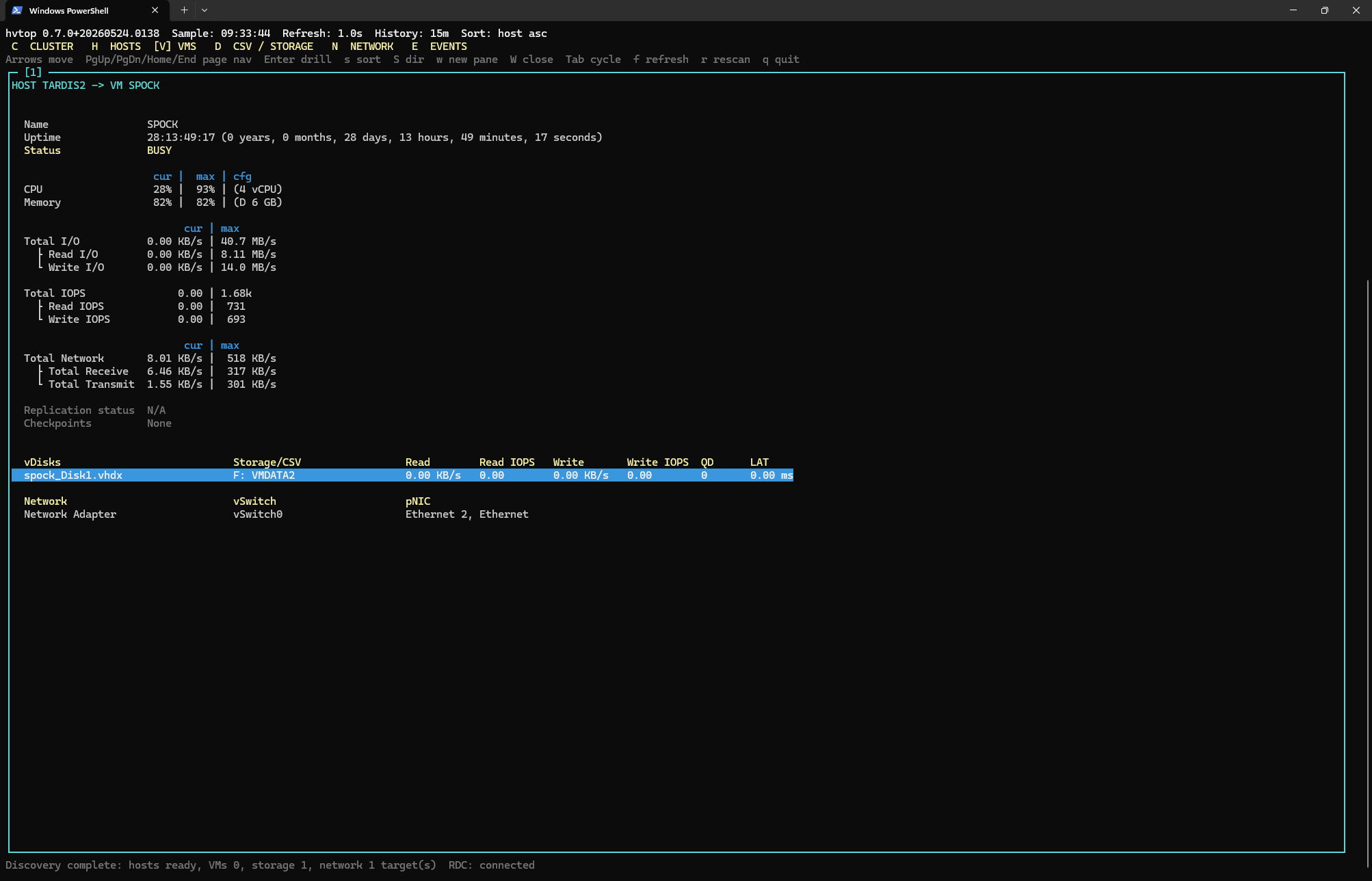

VM Detail	Storage	Storage Detail

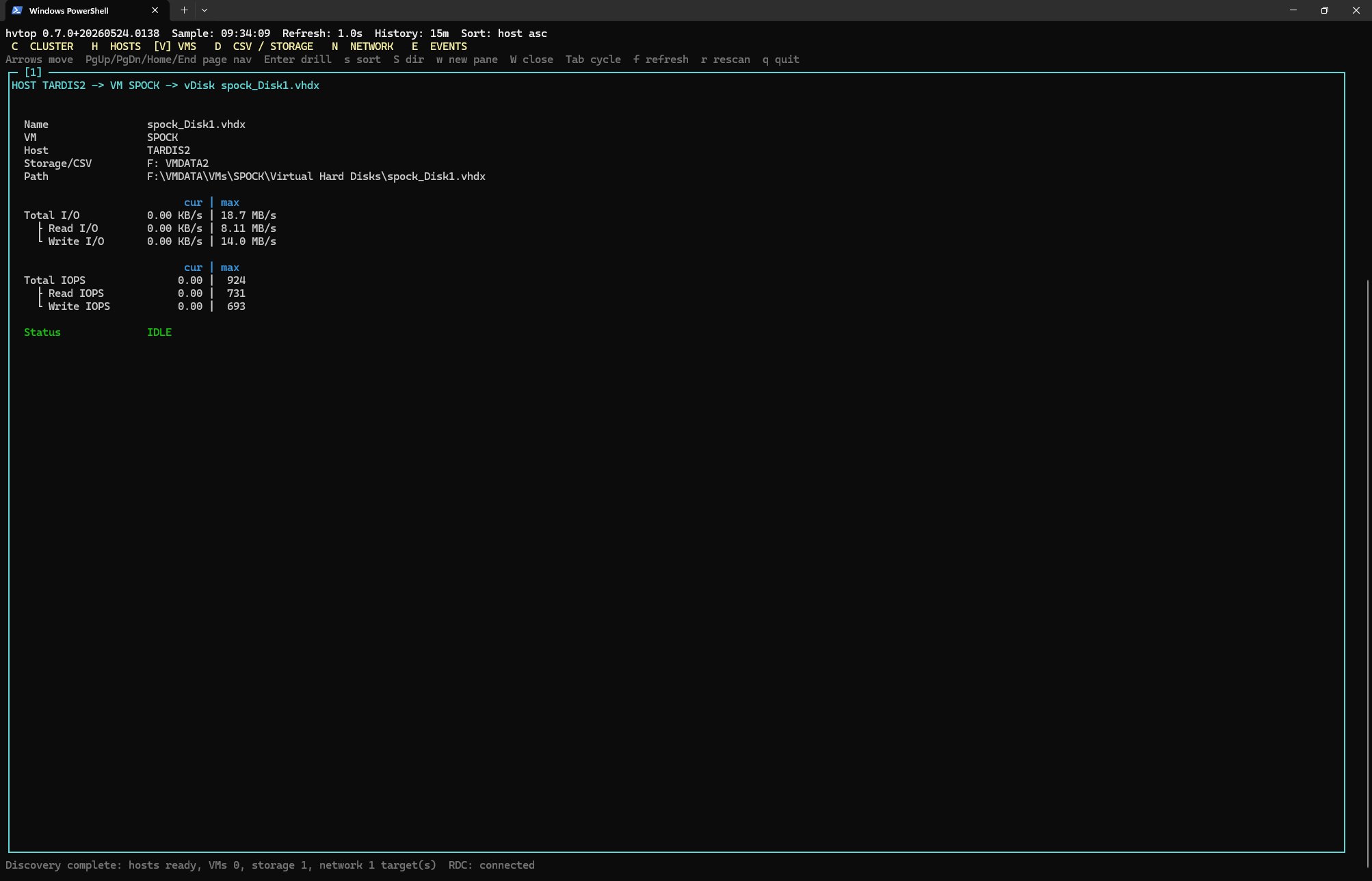

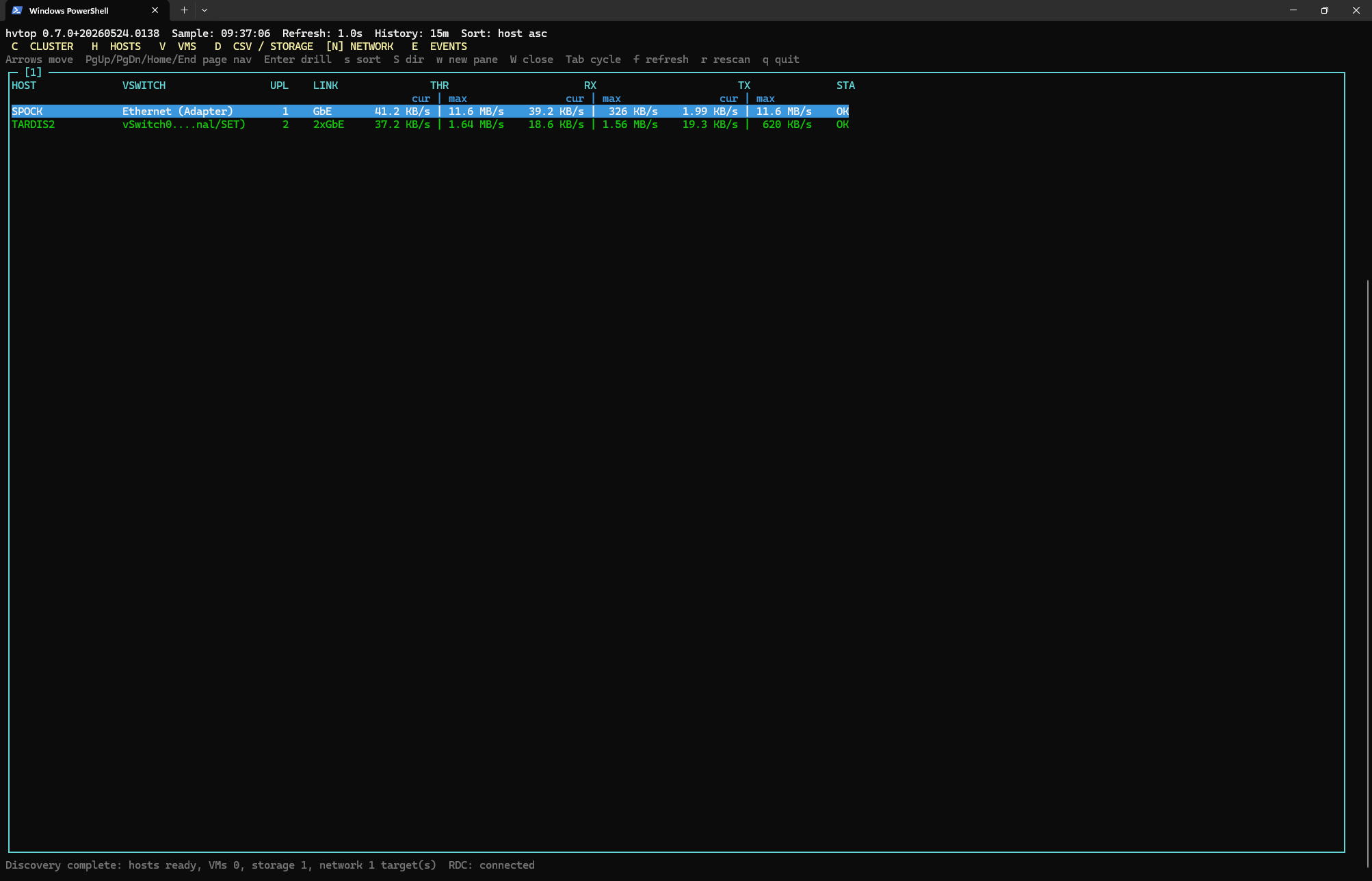

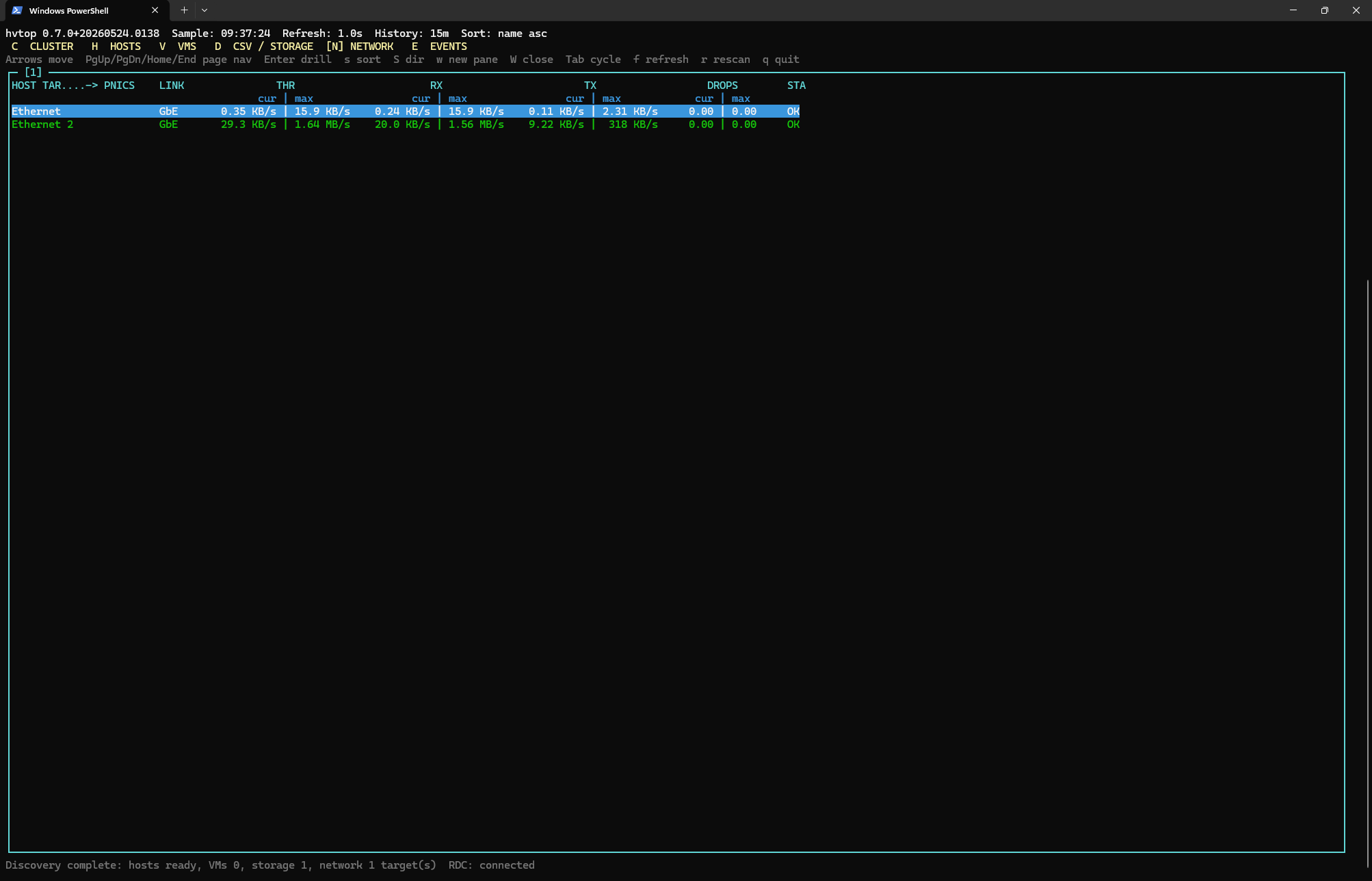

vHDX Detail	Network	Physical NICs

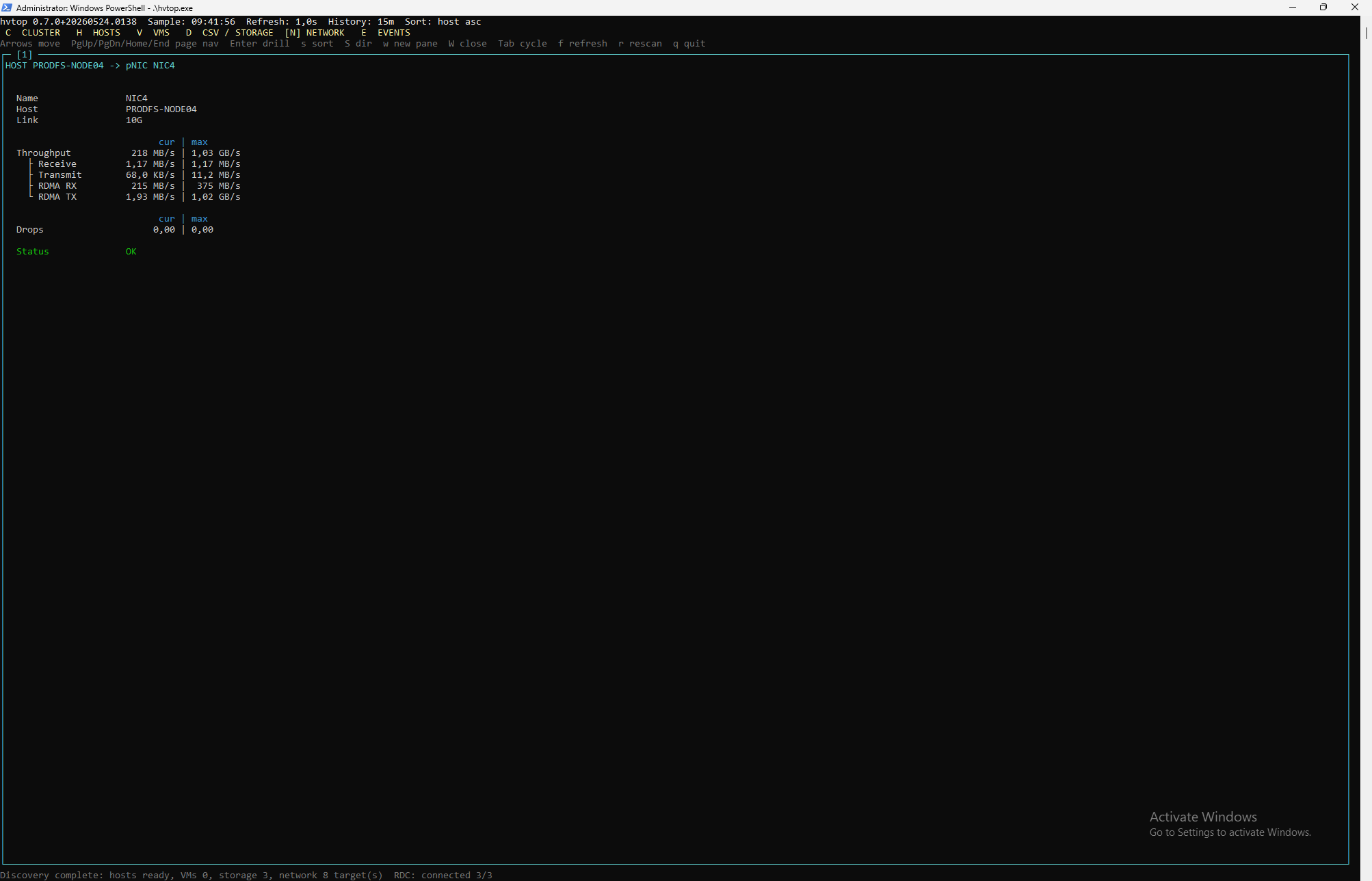

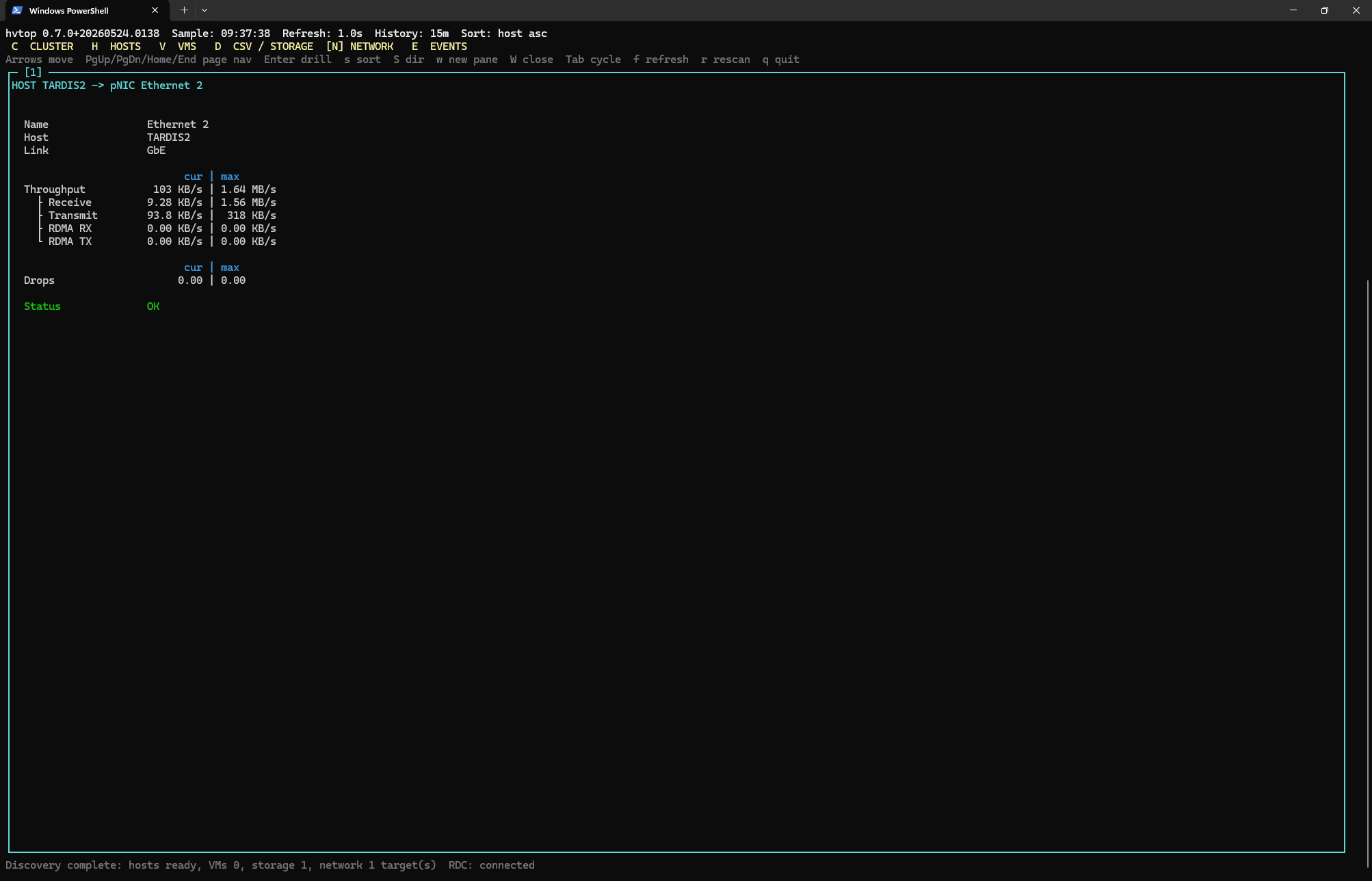

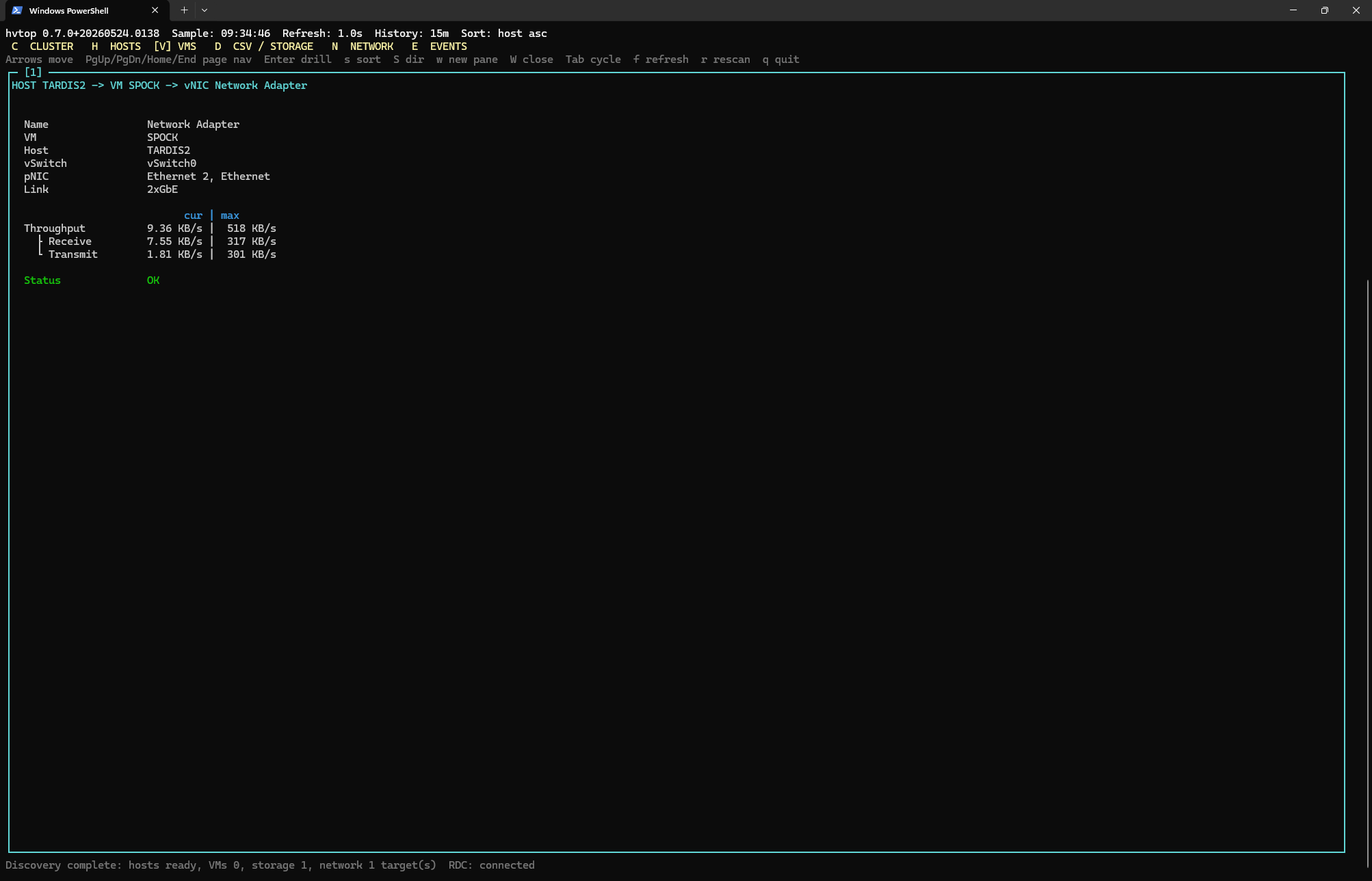

Network pNIC Detail	pNIC Detail	vNIC Detail

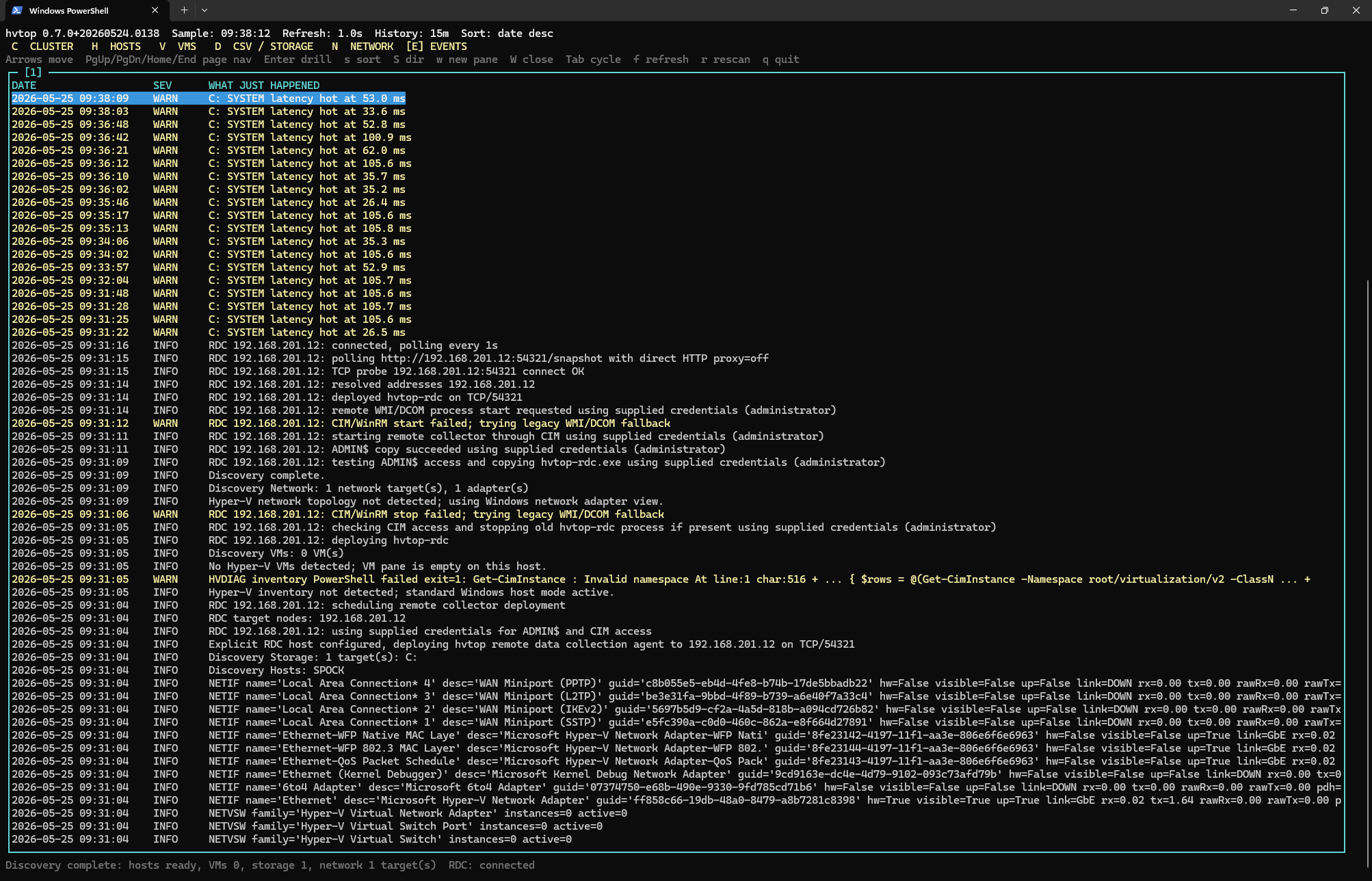

Events

Installing

Using winget:

winget install mazvazzeg.hvtop -e

or: Download

Run Native (Building from source)

cd .\hvtop.Native
dotnet run

Publish a single executable:

dotnet publish -c Release -r win-x64 --self-contained true /p:PublishSingleFile=true /p:EnableCompressionInSingleFile=true

Build release zip packages:

.\scripts\build-release.ps1

This creates both release variants under artifacts\release:

hvtop--win-x64.zip
  hvtop.exe
  hvtop-rdc.exe

hvtop--win-x64-portable.zip
  hvtop.exe
  hvtop-rdc.exe

The non-portable win-x64 package is framework-dependent and requires the .NET 8 runtime on the target host. The win-x64-portable package is self-contained.

Useful options:

dotnet run -- --refresh 1 --history 15
dotnet run -- --rdc-host HV01 --rdc-user DOMAIN\AdminUser --rdc-password "secret"
dotnet run -- --rdc-host HV01 --rdc-token "shared-secret"
dotnet run -- --rdc-disable
dotnet run -- --debug-log
dotnet run -- --smoke

Command Line Options

hvtop.exe accepts these options:

--refresh         Local UI/data refresh interval. Default: 1, minimum: 1
--history         History window for max/min values. Default: 15
--rdc-port              Remote Data Collector TCP port. Default: 54321
--rdc-refresh     Remote Data Collector interval. Default: 1
--rdc-host           Deploy/poll hvtop-rdc on an explicit remote host.
--rdc-user           Username for remote ADMIN$/CIM access.
--rdc-password   Password for remote ADMIN$/CIM access.
--rdc-token         Token passed to hvtop-rdc. Default: generated per run.
--rdc-disable              Disable remote data collection.
--local-disable            Disable local data collection; requires --rdc-host.
--debug-log                Write hvtop.log; also enables remote hvtop-rdc.log.
--smoke                    Print one sample and exit.
--help                     Show help.
--version                  Show version and exit.

hvtop-rdc.exe is normally deployed and started by hvtop.exe, but accepts:

--port                  Listen TCP port. Default: 54321
--listen           HTTP listener prefix. Default: http://+:/
--refresh         Collection interval. Default: 1
--history         History window. Default: 15
--token             Required token for incoming requests.
--debug-log                Write hvtop-rdc.log beside the executable.
--help                     Show help.
--version                  Show version and exit.

The native version currently uses PDH for host CPU, memory, disk throughput, IOPS, queue depth, and latency. Network rates come from the native Windows IP Helper API. VM rows are populated from Hyper-V inventory and counters when Hyper-V is available; otherwise the VM pane is empty and the host/storage/network panes remain useful on standard Windows servers.

Keys

C: Cluster
H: Hosts
V: VMs
D: CSV/storage
P: Physical disks
N: Network
E: Events
Up/Down: move selection
PgUp/PgDn/Home/End: page navigation
Enter: drill down
s: select sort column
S: toggle sort direction
w: open a new pane
W: close the active pane
Tab: cycle panes
f: cycle refresh delay
r: rescan inventory/topology
Backspace or Esc: back
q: quit

Drill Down

The intended navigation path is:

CLUSTER -&gt; HOSTS -&gt; select host -&gt; host detail -&gt; select VM -&gt; VM detail

On non-cluster hosts, the flow starts at HOSTS. On standard Windows servers without Hyper-V, the VM pane is expected to be empty.

The top-level VMs, CSV/storage, Physical disks, and Network panes are global views. In cluster/RDC mode they include rows from all reporting hosts and show a HOST column so the source node is visible.

Detail panes resolve the selected row from the latest snapshot on every repaint, so values continue updating live while you are drilled in.

First Panels

Clusters: cluster name, number of nodes, nodes in UP status, owner node
Hosts: hostname, version, uptime, CPU, memory, I/O, network, status
VMs: host, name, version, uptime, CPU, memory, I/O, network, status
CSV/storage: host, name, free space, I/O, IOPS, queue depth, latency, status
Physical disks: host, PDID, type, size, I/O, IOPS, queue depth, latency, status
Network: host, vSwitch or adapter, link, throughput, receive, transmit, drops, status
Events: timestamped status, spike, and collector events

Each metric shows current and max-in-history values as current | max. The history window defaults to 15 minutes.

Metric values use a compact four-character numeric display where the unit is outside the number. Examples: 999 KB/s, 1.00 MB/s, 1.32 GB/s, 32.2 GB/s. Throughput values scale on binary boundaries: 1024 KB/s becomes 1.00 MB/s, 1024 MB/s becomes 1.00 GB/s, and the same 1024-based rule is used for capacity values such as MB, GB, and TB.

Remote Data Collector

On Failover Cluster setups, hvtop can start an RDC (Remote Data Collector) process on peer nodes if the ADMIN$ share is accessible for the currently logged-in user. hvtop-rdc.exe reports the same metrics to the local hvtop.exe process through a small HTTP interface. The main hvtop.exe process polls those remote collectors and merges the returned host/VM/storage/network telemetry into the local view.

Outside a cluster, an admin workstation can target one remote host explicitly:

hvtop.exe --rdc-host HV01 --rdc-user DOMAIN\AdminUser --rdc-password "secret"

When --rdc-host is used, hvtop deploys hvtop-rdc.exe to that host through ADMIN$, starts it through CIM or a legacy WMI/DCOM fallback, and merges the remote telemetry with the local host view once data arrives. If --rdc-user and --rdc-password are omitted, hvtop uses the current Windows logon context.

By default hvtop generates a per-run RDC token and passes it to hvtop-rdc.exe. Use --rdc-token to set a known token manually, for example when checking the remote collector endpoint with curl:

hvtop.exe --rdc-host HV01 --rdc-token "shared-secret"
curl "http://HV01:54321/snapshot?token=shared-secret"

Local collection remains enabled by default even when --rdc-host is specified, so the local host still has useful data if the remote target is unavailable. Use --local-disable for remote-only workstation mode. In that mode --rdc-host is required. If the remote collector cannot be deployed or polled, hvtop keeps the TUI open, shows the terminal RDC error in the bottom status line, and leaves the Events pane available for the detailed failure trail.

Physical Disk Discovery

The P physical disk pane uses native PhysicalDisk(*) PDH counters for the hot-path metrics: I/O, IOPS, queue depth, and latency. Inventory data is resolved less frequently and is used only to label those counter instances with useful metadata such as PDID, type, size, friendly name, model, firmware, and serial.

hvtop correlates physical disk counter instances with several Windows inventory sources:

Get-Disk for Windows disk number, bus type, media type, size, and friendly name.
Win32_DiskDrive for model, manufacturer, firmware revision, serial number, and virtual/emulated disk hints.
Get-PhysicalDisk -PhysicallyConnected and Get-PhysicalDisk for Storage Spaces and S2D physical disk identity.
Get-PhysicalDiskStorageNodeView when available, so cluster/S2D nodes can map the disks that are physically connected to the current node.
Win32_ComputerSystem and Win32_SCSIController as a fallback for virtual machines, so otherwise anonymous rows can still show labels such as Hyper-V Storage, VMware PVSCSI, VirtIO Storage, or VirtualBox Storage instead of plain n/a.

Physical disk sizes are displayed as vendor/marketing capacity with the binary capacity in details, for example 8 TB (7.28 TiB). The overview pane keeps the short vendor-style value to save horizontal space.

Native Collection Direction

The native collector should use:

PDH/perflib counters for high-frequency metrics.
Hyper-V WMI/CIM APIs for topology and inventory, sampled less frequently.
Cluster APIs for CSV ownership and CSV-specific state.
ETW later for event-rich timelines where counters are not enough.

Good next additions are:

Per-VM Hyper-V counter mapping for network and virtual disk throughput.
Cluster Shared Volume discovery without shelling out to PowerShell.
Per-vDisk Level 3 drill-down from VM hard disk inventory and virtual storage counters
Threshold configuration in a JSON file.
CSV or JSON event export.
