vaultspec-dashboard

The human-facing visual workspace for a Vaultspec project.

What it does · Project layout · Getting started · Capabilities · Vaultspec family · Documentation · Status

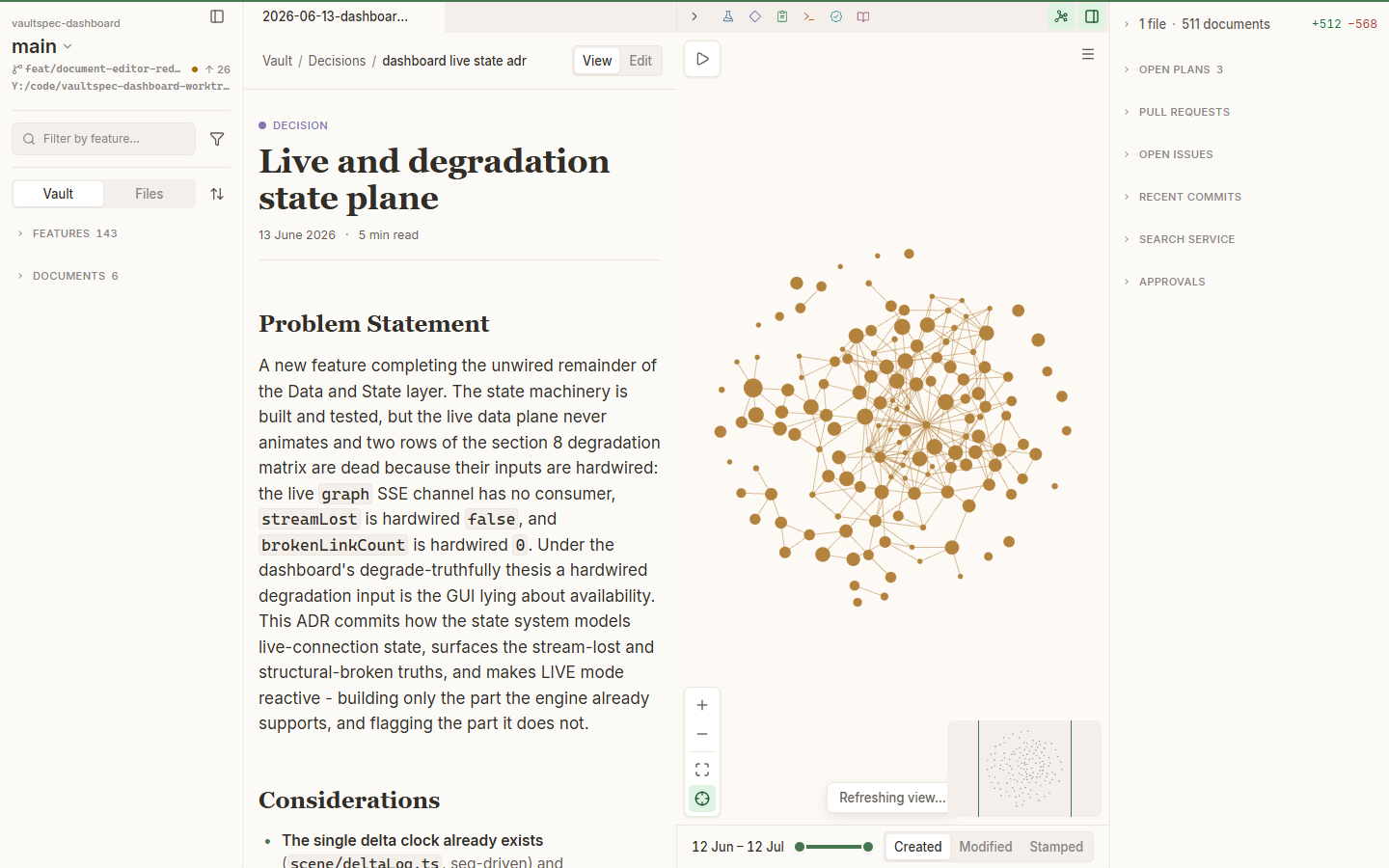

Complete Vaultspec workspace showing the project and worktree selector, Vault and Files navigation, populated graph, timeline, and activity

The complete workspace keeps repository context, vault content, relationships, history, and current activity in one view.

What it does

Project knowledge often spans source files, Git history, worktrees, current activity, and .vault/. This Git-tracked directory stores research, decisions, plans, execution records, and audits. File browsers show each item but hide the relationships between them.

vaultspec-dashboard brings this work into one visual workspace. Choose a project and worktree, then browse documents or source files beside focused, switchable vault and code graphs. Inspect changes, open work, and history without turning the entire project into an unreadable graph. Search by file or title, with optional semantic search for meaning-based discovery. Author and review Markdown without leaving the workspace.

Visual tour

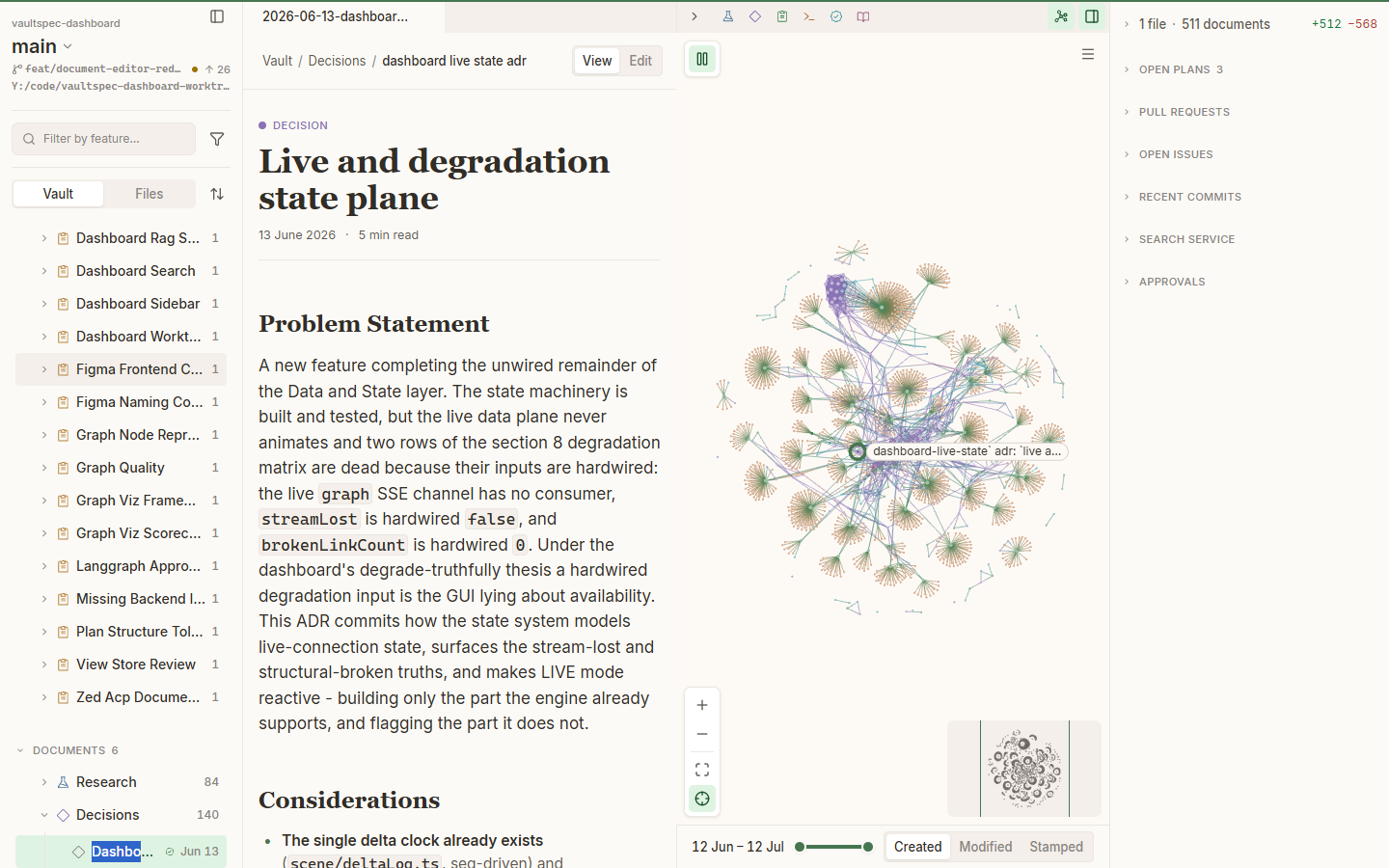

Markdown decision document open within its vault and repository context beside the populated graph

Open a document from Documents > Decisions without losing its workspace and graph context.

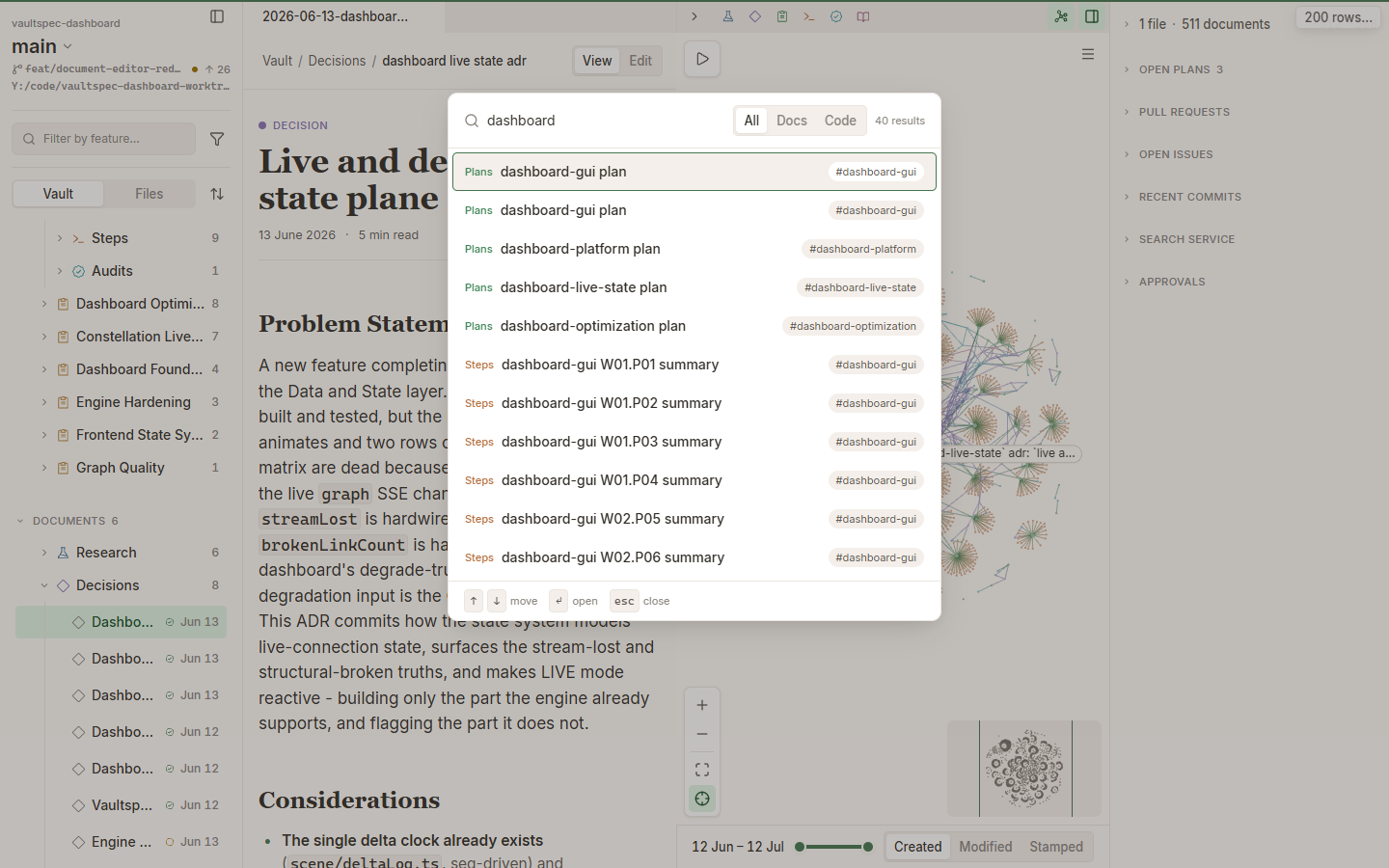

Search documents and code with a real query, scoped result controls, and populated results.

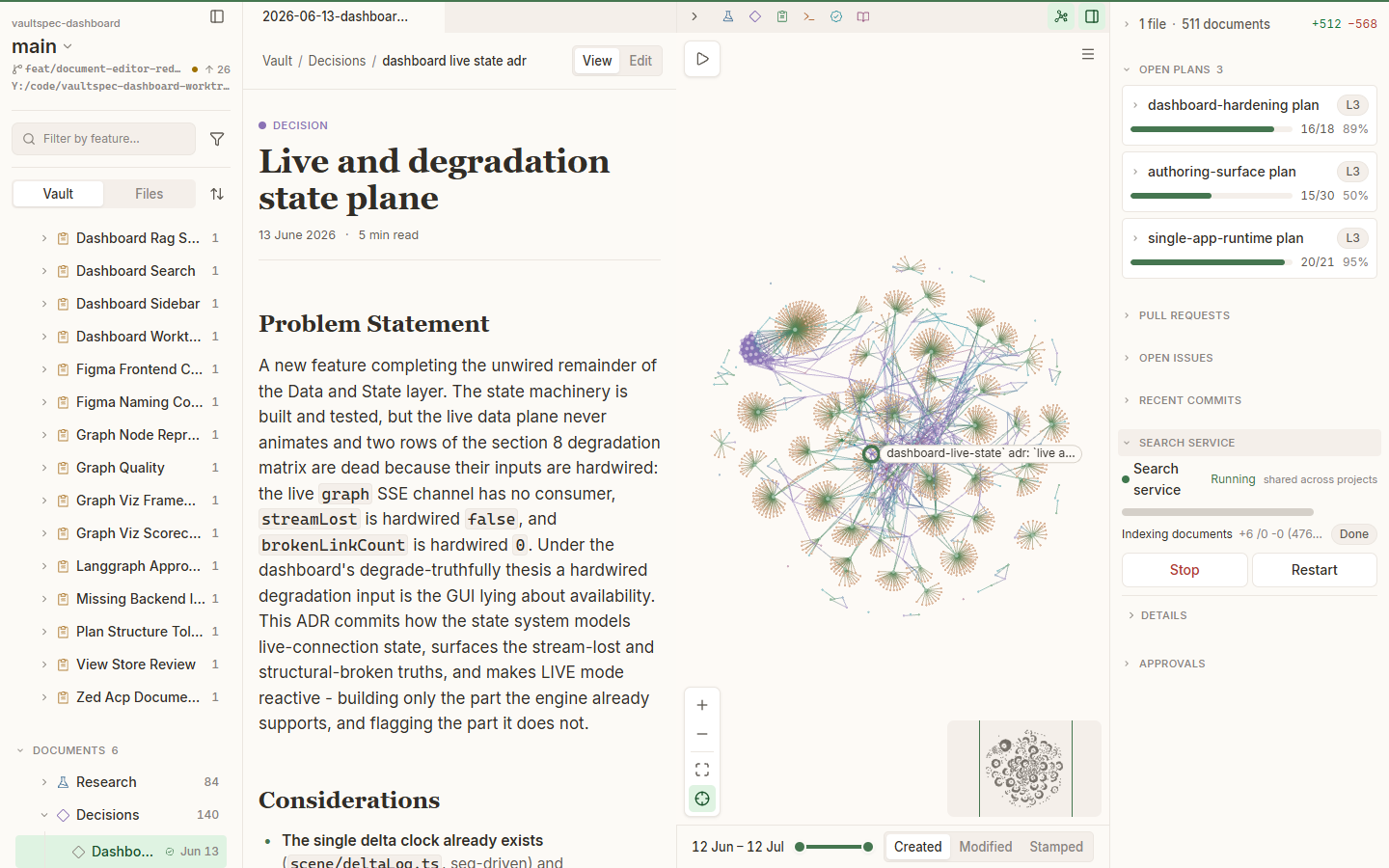

Activity and status view showing open plans and the running search service

Review current open plans and search-service state from the running workspace.

Project layout

Project responsibilities

Project	Responsibility
vaultspec-core	Governs the workflow and `.vault/` record. Owns validation, command-line and Model Context Protocol (MCP) surfaces, and authoritative document materialization.
vaultspec-rag	Provides optional retrieval-augmented generation (RAG). Indexes vault documents and source code, then retrieves both by meaning.
vaultspec-dashboard	Owns the `vaultspec` binary, visual workspace, application programming interface (API), session state, and governed review experience.

The dashboard delegates governed writes to core and semantic retrieval to RAG. It uses the core command-line interface, RAG's local service API for reads, and bounded RAG commands for explicit lifecycle actions.

Installed runtime

The installed dashboard is one native Rust executable named vaultspec. It includes the engine, API, live event stream, and web interface. Run vaultspec serve from a managed worktree. The command prints a local URL for the running application.

The dashboard uses two independently installed companions:

vaultspec-core supplies governed vault operations. Without core, the dashboard warns and continues with those capabilities unavailable. Full authoring requires core 0.1.34 or later.
vaultspec-rag supplies optional semantic search. The dashboard discovers the machine-wide service and can broker explicit lifecycle actions. Stopping it also affects its other clients.

A source checkout uses a separate Vite and Rust development loop; it isn't the installed product model.

Current-main vaultspec status output showing the active worktree, graph index, core invocation, RAG availability, seat, and watcher

This current-main status capture is generated from real vaultspec --json status output against this worktree. Its lifecycle fields may be newer than the latest release.

Getting started

Prerequisites and installation

vaultspec-dashboard supports macOS on Apple silicon and Intel, glibc-based Linux on arm64 and x64, and Windows on x64.

The routes below target the latest published GitHub Release. Development on main may contain lifecycle changes that haven't been released yet.

Every supported channel installs the complete product — the vaultspec dashboard, the copied external updater, the pinned A2A companion capsule, and the signed release manifest, licenses, and software bill of materials — as one offline-complete tree, and verifies that tree against its own release manifest with the shipped bounded authority (vaultspec verify-release) before it is considered installed. A partial or binary-only install is not a supported state.

Shell script (macOS and Linux) — the product-owned installer:

curl --proto '=https' --tlsv1.2 -LsSf https://github.com/nevenincs/vaultspec-dashboard/releases/latest/download/install.sh | sh

PowerShell script (Windows) — the product-owned installer:

powershell -ExecutionPolicy Bypass -c "irm https://github.com/nevenincs/vaultspec-dashboard/releases/latest/download/install.ps1 | iex"

MSI installer (Windows): the complete MSI packages every product file with a product receipt and clean uninstall; it appears as vaultspec--x86_64-pc-windows-msvc.msi under Releases.

Scoop (Windows):

scoop bucket add vaultspec https://github.com/nevenincs/vaultspec-dashboard
scoop install vaultspec/vaultspec

The bucket/ directory in this repository is a self-hosted Scoop bucket. Run scoop update vaultspec to upgrade after a new release lands.

WinGet (Windows): winget install vaultspec.vaultspec points at the complete MSI with manager-owned upgrade and rollback.

Update and removal. A self-installed copy updates itself in place with vaultspec update (the copied external updater replaces the release outside the active seat, under the installation lock — never a partial swap); package-manager copies update through their manager (scoop update vaultspec, winget upgrade). Uninstalling removes the product tree but preserves your data, which lives outside the install directory.

> Not supported: cargo install / cargo-binstall. A bare Cargo install > places only the vaultspec binary, not the complete offline tree, so it cannot > preserve the release-set, receipt, verification, update, and removal guarantees > above. vaultspec-cli is withheld from crates.io until a Cargo channel can carry > the composite release contract. Use one of the channels above. > > Note on code signing: the installers, MSI, and binary archives are currently > unsigned. macOS Gatekeeper will quarantine the binary on first run - right-click the > binary, choose Open, and confirm the override prompt. Windows SmartScreen may show > an "Unknown publisher" warning - click More info then Run anyway to proceed.

Confirm the installation:

vaultspec --version

Your project must use Git. Governed capabilities also require vaultspec-core 0.1.34 or later. Install it separately with uv:

uv tool install 'vaultspec-core&gt;=0.1.34'

From the project directory, verify that the project is ready:

git rev-parse --is-inside-work-tree
vaultspec-core --version
vaultspec-core status --json -t .

The Git command must print true. The core version must be 0.1.34 or later. The status command must exit successfully, proving that core can read the managed vault.

If the project isn't managed yet, create only the core scaffolding:

vaultspec-core install core -t .

This command modifies the project by installing the core vault structure and configuration. Review the vaultspec-core getting-started guide before applying it to an existing project.

The walkthrough that follows uses an existing managed project with at least one decision record. A freshly scaffolded project contains no records yet. Follow the Vaultspec framework to create meaningful project records before continuing.

Start the dashboard

From the managed Git worktree, run:

vaultspec serve

Keep the terminal open. When the service is ready, it prints:

vaultspec serve: listening on http://127.0.0.1:8767 (bearer token in service.json)

Open http://127.0.0.1:8767 in your browser. A successful dashboard shows the current worktree selector, Vault/Files browser, populated graph, timeline, and activity rail. The complete workspace capture shows this result.

Optional semantic search

vaultspec-rag adds optional semantic search. Name matching remains available without it.

The current vaultspec-rag service runtime requires:

CPython 3.13.x
An NVIDIA CUDA-capable graphics processor (GPU) with about 3 GB of free video memory
Linux or Windows

macOS, AMD GPUs, and Apple silicon aren't supported. The service has no central processing unit (CPU) fallback. The dashboard requires vaultspec-rag 0.2.28 or later, but it doesn't verify the resident version.

Install vaultspec-rag in the project's Python environment. A global uv tool installation isn't suitable for launching its GPU service.

uv add vaultspec-rag
uv run vaultspec-rag install
uv sync
uv run vaultspec-rag server start
uv run vaultspec-rag index
uv run vaultspec-rag server jobs

Wait for the vault and code jobs to finish before using semantic search. Follow the installation guide and getting-started guide for the complete setup.

When the service is offline, Search service reports that it isn't running. Search falls back to literal document and code-name matching and may report:

> Full search is unavailable — showing name matches only.

Follow one record from vault to search

Check the current location: project / worktree selector.

Expected result: The selector names the project and worktree whose vault you're viewing. When it names the intended workspace, leave it unchanged.
In Vault mode, expand Documents, then expand Decisions.

Expected result: Decision records appear beneath Decisions.
Select a decision record with a single click.

Expected result: The record becomes the current selection. The graph uses the same selection.
Double-click the record, or press Enter, to open it in the docked reader.

Expected result: The reader shows a breadcrumb, type, title, date, and body. It also shows View and Edit when editing is available.
Move focus to the graph canvas, then use the arrow keys to walk through connected nodes.

Expected result: The shared selection moves through the graph. Press Enter to open the selected record, E to expand it, or Escape to clear the selection.
Press Command+P on macOS or Ctrl+P on Windows and Linux.

Expected result: Search documents and code opens with All, Docs, and Code scopes.
Choose Docs, enter part of the decision title, and press Enter on the selected result.

Expected result: The matching decision opens in the docked reader.

Capabilities

See Visual tour for the corresponding workspace, document, search, and status views.

User goal	Mounted view	Boundary
Browse project content	Project and worktree selector; Vault and Files browser	Shows registered projects and worktrees, the vault tree, and the code tree.
Explore relationships and history	Desktop graph with timeline, filters, and minimap	Switches between vault and code corpora. It doesn't mix them. The graph isn't available in compact or mobile layouts.
Inspect a document or source file	Docked Markdown viewer or read-only code viewer	Code inspection includes syntax highlighting, line numbers, and copy. Code editing isn't supported.
Edit vault content	Markdown authoring view with View/Edit, toolbar, properties, rename, and save controls	Supports approved vault Markdown writes when authoring is available. Core materializes approved changes.
Search documents and code	`Mod+P` command palette with All, Docs, and Code scopes	Combines semantic and literal search, returns a bounded result set, and opens selections in the viewer.
Monitor and review work	Activity and status rail	Covers changes, open plans, pull requests, issues, commits, search service status, approvals, and reviews. Sections can degrade independently.

When a capability is unavailable

The dashboard keeps unaffected features available when a data source or browser capability fails. Each affected view reports its own limitation.

Unavailable capability	What the interface says	What remains usable
vaultspec-core	The server warns and continues. The graph may say `Links unavailable — the rest of the graph is live`.	Structural graph nodes, independent data, and supported reads remain. Declared links and authoring are unavailable.
Semantic search	Search may say `Full search is unavailable — showing name matches only.` Search service says `Search service not running`.	Document-metadata and code-name matches, graph, browsing, timeline, reading, and GitHub data remain.
GitHub data	Pull-request and issue sections report that the `gh` command-line interface (CLI) isn't available or that GitHub is unavailable.	Local Git history, vault content, graph, plans, and search remain.
Browser graphics	The canvas says `Graphics unavailable`. After context loss, it says `Restoring graphics…`.	Non-canvas views remain while the canvas recovers or graphics stay unavailable.
Some graph relationships	The graph reports `Links unavailable — the rest of the graph is live`, `Mentions unavailable — the rest of the graph is live`, or `Timeline unavailable — the rest of the graph is live`.	The available graph stays visible without the missing relationship type.
The entire graph	The view says `Graph is not available`.	Non-graph views and any other available capabilities remain.

Glossary

Term	Meaning
Vaultspec	A four-project family: vaultspec-core, vaultspec-rag, vaultspec-dashboard, and vaultspec-a2a.
vault or `.vault/`	A project directory containing structured Markdown research, decisions, plans, execution records, and audits.
vault document	One structured Markdown artifact stored in a vault.
Vaultspec pipeline	An approval-gated flow through Research, Decide, Plan, Execute, and Verify. See the Vaultspec framework.
Architecture Decision Record (ADR)	A record of a binding project decision and its reasoning.
semantic search	Search that ranks indexed text by meaning, not only by exact words. See the search and indexing guide.
vaultspec-core	The governed workflow, command-line interface, validators, and vault-document tooling.
vaultspec-rag	The optional retrieval service that indexes vault documents and code.
workspace	A registered Git project root.
worktree	One checked-out working copy used for the current operation.

Vaultspec family

Project	Role	Status
vaultspec-core	The agent harness: the pipeline, the vault, and the CLI that drives them.	Beta
vaultspec-rag	The semantic search component for vault and code.	Beta
vaultspec-dashboard	The application that runs it all as a UI.	Beta
vaultspec-a2a	Headless agent-to-agent orchestration.	Beta

Documentation

Task	Documentation
Install the dashboard	Download the latest release
Learn the core workflow	Read the Vaultspec framework guide
Use vaultspec-core	Core command-line interface (CLI) reference · Core MCP reference
Diagnose a core project	Run the core health doctor
Install vaultspec-rag	RAG installation guide
Search and index content	RAG search and indexing guide
Use vaultspec-rag	RAG CLI reference · RAG MCP reference
Troubleshoot the RAG service	Service-mode troubleshooting
Review dashboard changes	Dashboard engine release notes
Report an application problem	Open a dashboard issue

Status and license

Status: Beta. vaultspec-dashboard is public, unarchived, and actively developed. See GitHub Releases for current releases and the changelog for release details.

Report bugs and request features through GitHub Issues. Include:

Output from vaultspec --version
Operating system, platform, and installation method
Exact command and working directory
When applicable, selected worktree or --scope
Steps to reproduce the problem
Output from vaultspec --json status
A relevant error excerpt or screenshot
vaultspec-rag health details for semantic-search issues only

Keep diagnostics focused. Redact credentials, tokens, private paths, and private content before submitting a report.

License: MIT.

Contributing

These instructions apply to a source checkout. They don't install a published release.

Install the toolchain, synchronize development dependencies, and start the Vite and Rust development servers:

mise install
just dev deps sync
just dev serve

Run the relevant quality checks before submitting changes:

just dev lint all
just dev test all
just dev test e2e
just ci

just dev test all runs the Rust and Vitest suites. End-to-end tests run separately with just dev test e2e.

Build the embedded, single-binary product with:

just dev build package

Use mise.toml and the justfile as the authoritative task definitions. For design work, use:

Read the current-main application lifecycle when working on unreleased launch, update, or single-instance behavior.

Release automation lives in the Release Please workflow and distribution workflow. Use conventional commits and let Release Please update the engine changelog.

Regenerate terminal README assets with:

uv run --no-sync python scripts/render_readme_assets.py

To regenerate application captures, keep just dev serve running in one terminal. Run the capture task in another:

npm --prefix frontend run readme:capture

The capture task generates the README figures and their manifest.
