AVD Health Monitor

A modern Windows system tray application for real-time Azure Virtual Desktop (AVD) endpoint health monitoring.

Screenshots

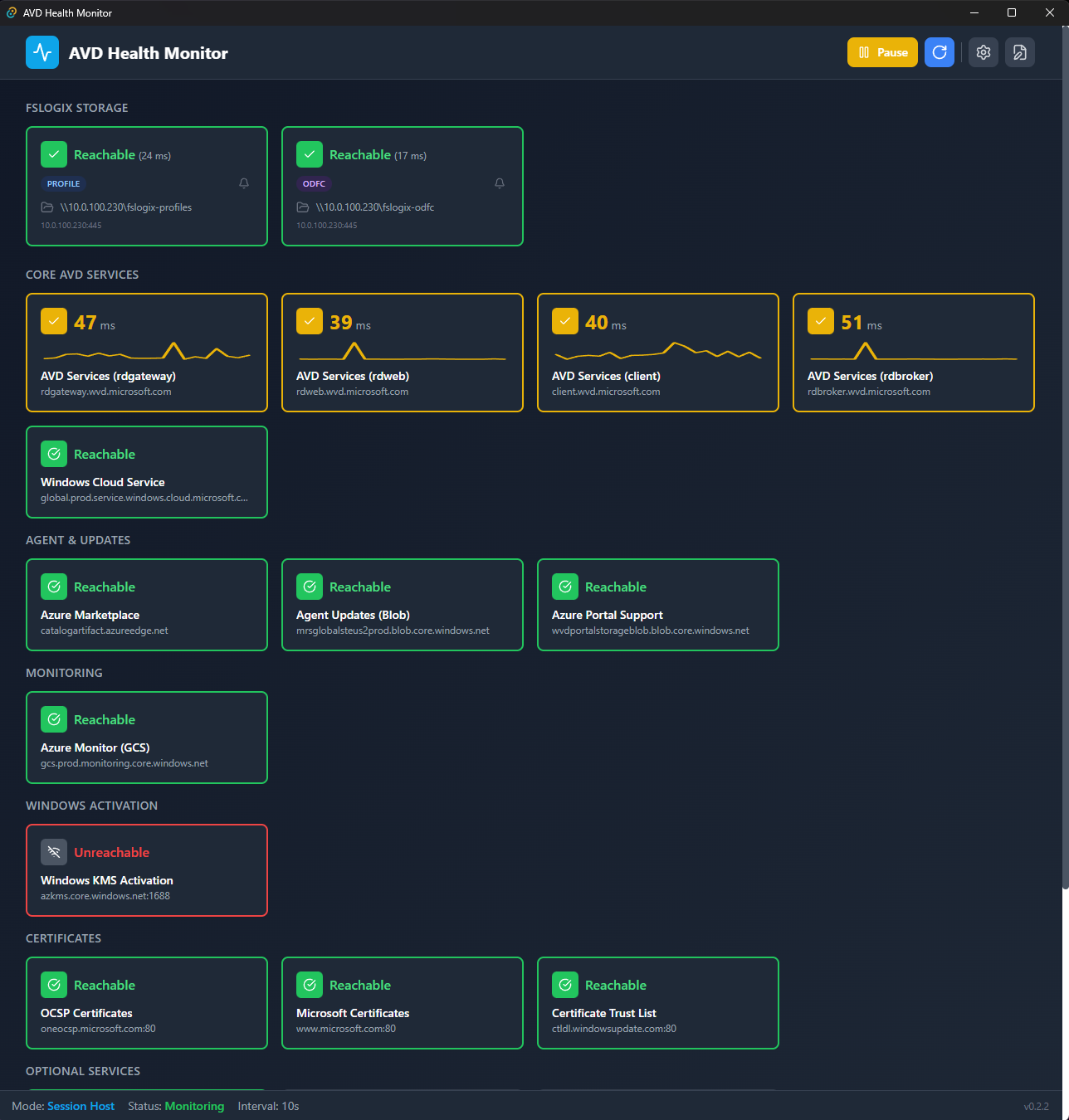

Main Dashboard

Real-time endpoint monitoring with latency graphs, statistics, and enable/disable toggles.

Main Dashboard

Settings Panel

Configure application mode, thresholds, notifications, and manage endpoints.

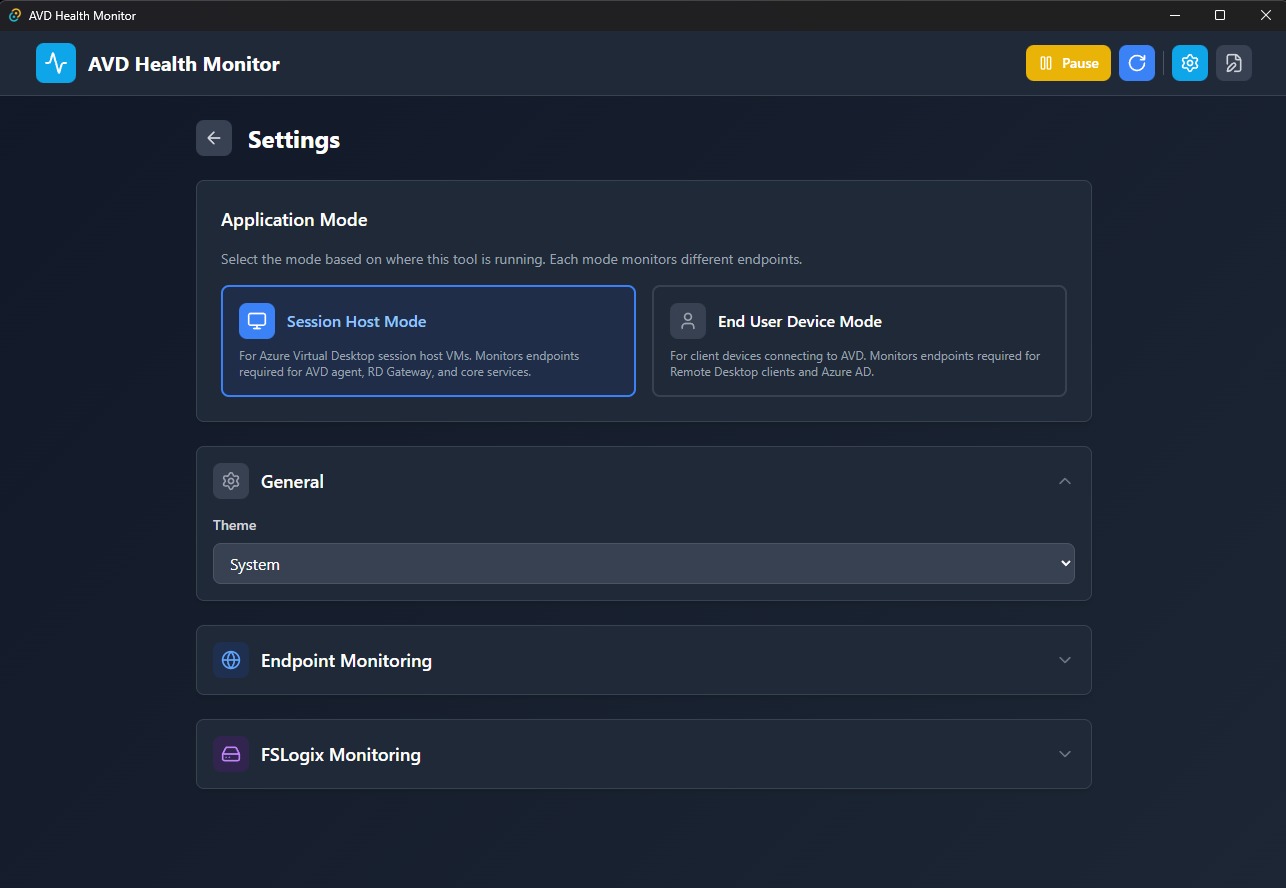

General Settings

Settings Panel - Mode Selection

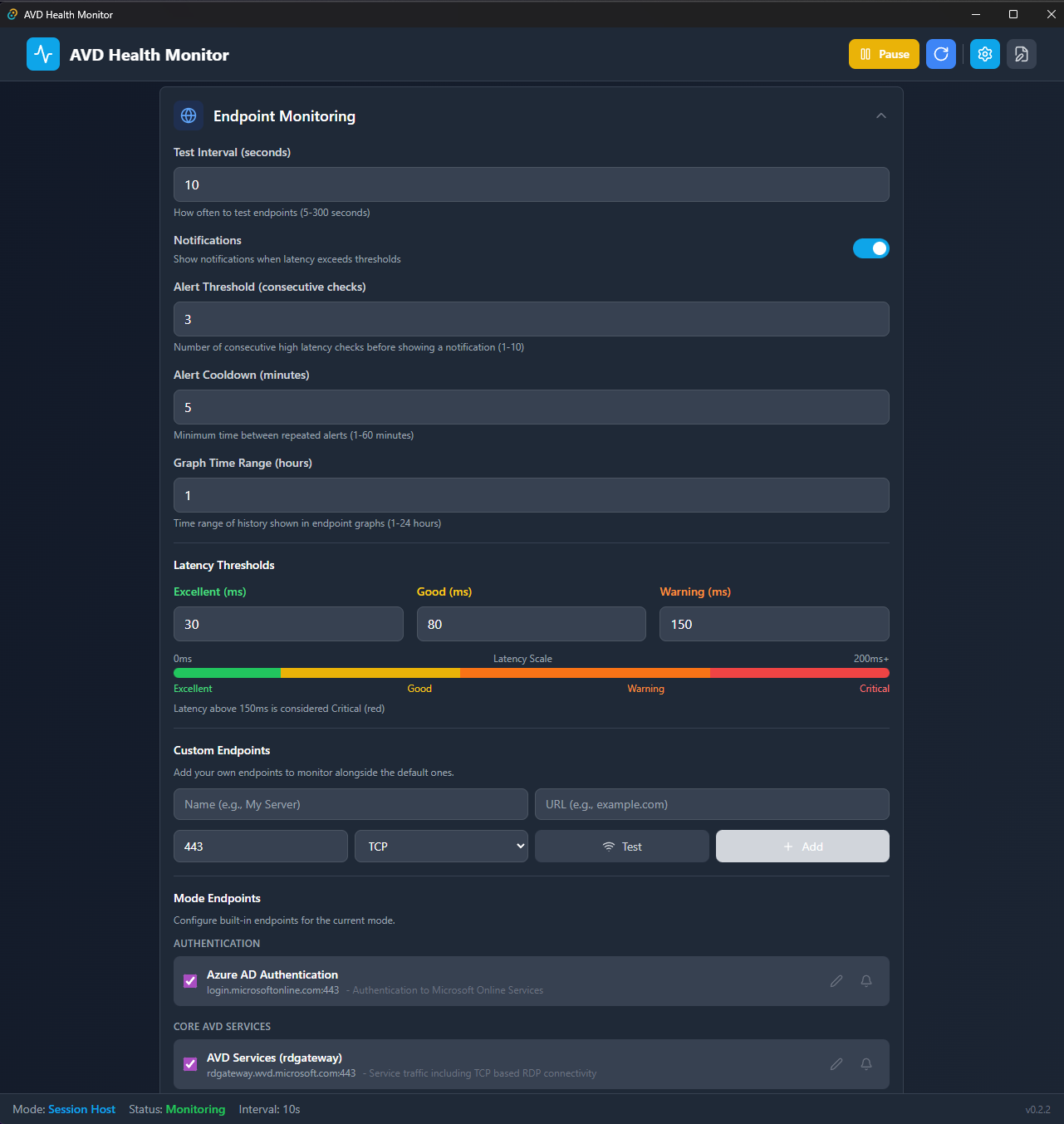

Endpoint Monitoring - Settings

Settings Panel - Endpoints

System Tray

Dynamic color-coded tray icon shows current status at a glance. Right-click for quick actions.

System Tray

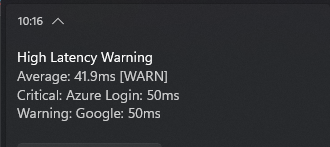

Windows Toast Notifications

Consolidated alerts with details for all affected endpoints.

Toast Notification

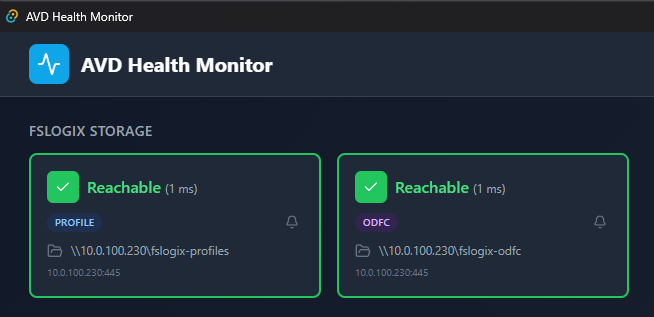

FSLogix Storage Monitoring (Session Host Mode)

Real-time connectivity monitoring for FSLogix profile and ODFC storage paths.

FSLogix Monitoring

FSLogix Monitoring - Settings

Configure FSLogix-specific test intervals, alert thresholds, and mute individual paths.

Settings Panel - Endpoints

Features

Two Application Modes

The application supports two distinct monitoring modes with pre-configured endpoints based on Microsoft's official AVD documentation:

Session Host Mode

For Azure Virtual Desktop session host VMs
Monitors endpoints required for AVD agent, RD Gateway, Windows activation, and core services
Includes wildcard domain expansion (e.g., *.wvd.microsoft.com expands to rdgateway, rdweb, client, rdbroker)
FSLogix Storage Monitoring - Automatically detects and monitors FSLogix profile/ODFC storage paths

End User Device Mode

For client devices connecting to AVD (Windows, macOS, iOS, Android, Web)
Monitors endpoints required for Remote Desktop clients, Azure AD authentication, and Microsoft services

Switching modes automatically loads the appropriate endpoints and triggers a connectivity test.

Core Functionality

Real-time Latency Monitoring - TCP, HTTP/HTTPS testing with configurable intervals (5-300 seconds)
Comprehensive AVD Endpoints - Pre-configured endpoints from Microsoft's official documentation
Custom Endpoints - Add your own endpoints to monitor alongside defaults
Enable/Disable/Mute Endpoints - Toggle monitoring or mute alerts for individual endpoints
Live Graphs - Interactive sparkline charts with configurable time range (1-24 hours)
Statistics - Min/Max/Average latency per endpoint
History Persistence - Latency data persisted to localStorage (survives app restarts, 24h retention)

User Interface

Modern Windows 11 Design - Clean, professional interface
Dark/Light Themes - Automatic system theme detection or manual selection
Dynamic Tray Icon - Color-coded status indicator
Tray Menu Actions - Quick access to Settings, Test Now, Pause/Resume, and Exit
Real-time Dashboard - Cards with live latency updates and graphs
Interactive Tooltips - Hover over graph points to see exact values and timestamps

Notifications & Alerts

Smart Notifications - Windows toast alerts when latency exceeds thresholds
Configurable Thresholds - Set your own excellent/good/warning/critical levels
Consecutive Check Threshold - Only alert after N consecutive high latency checks (default: 3)
Alert Cooldown - Configurable cooldown period between repeated alerts (1-60 minutes)
Mute Individual Endpoints - Suppress alerts for specific endpoints without disabling monitoring
Consolidated Alerts - Multiple endpoint issues combined into single notification
Visual Feedback - Tray icon changes color based on worst endpoint status

FSLogix Storage Monitoring (Session Host Only)

Automatic Detection - Reads FSLogix profile and ODFC container paths from Windows Registry
Real-time Connectivity - Tests SMB connectivity to storage endpoints (port 445)
Separate Test Interval - Configure FSLogix test frequency independently from endpoint tests (default: 60 seconds)
Consecutive Failure Alerts - Only alert after N consecutive failures (default: 3)
Mute Individual Paths - Suppress alerts for specific storage paths without disabling monitoring
Visual Status - Green/red indicators show reachable/unreachable status with latency

Configuration

Separate Endpoint Files - Mode-specific JSON configuration files for session host and end user endpoints
Editable Configuration - All settings stored in editable JSON files
Auto-save - Configuration changes automatically saved
Open in Editor - Quick access to edit settings files directly
Auto-start - Launch automatically on Windows boot

Installation

Windows Installer (Recommended)

Download the latest MSI installer from Releases
Run AVD-Latency-Checker--x64-setup.msi
Follow the installation wizard
Launch from Start Menu or Desktop shortcut

Portable Version

Download AVD-Latency-Checker--x64-portable.exe from Releases
Place anywhere (e.g., C:\Tools\AVDLatencyChecker)
Run the executable - no installation required

System Requirements

OS: Windows 10 (1809+) or Windows 11
Runtime: WebView2 (pre-installed on Windows 11, auto-installs on Windows 10)
RAM: ~50MB
Disk: ~15MB installed
Network: Internet access to test AVD endpoints

Usage Guide

First Launch

App starts minimized to system tray (look for colored icon)
Click the tray icon to open dashboard
Default mode is Session Host - switch to End User Device in Settings if needed
Tray icon color shows current status:
- Green = Excellent (<50ms default)
- Yellow = Good (50-100ms default)
- Orange = Warning (100-150ms default)
- Red = Critical (>150ms default)

Switching Modes

Open dashboard → Click Settings (gear icon)
Under Application Mode, select either:
- Session Host - For AVD session host VMs
- End User Device - For client devices
Endpoints will reload and a test will run automatically

Adding Custom Endpoints

Open Settings
Scroll to Custom Endpoints section
Enter Name (e.g., "My Gateway")
Enter URL (e.g., mygateway.example.com)
Set Port and Protocol (TCP/HTTP/HTTPS)
Click Test to verify connectivity
Click Add to save

Configuring Thresholds

Open Settings
Find Latency Thresholds section
Adjust values with visual scale preview:
- Excellent: Default 50ms
- Good: Default 100ms
- Warning: Default 150ms
- Critical: Automatically >150ms

Tray Menu Actions

Right-click the tray icon for quick actions:

Show Dashboard - Open the main window
Pause/Resume Monitoring - Temporarily stop/start tests
Test Now - Force immediate latency test
Settings - Open settings panel
Open Settings File - Edit JSON configuration directly
Exit - Close the application

Viewing Logs

Logs are stored in:

%APPDATA%\AVDHealthMonitor\logs\

Example log file: avd_latency_2026-01-04.log

Format (JSON Lines):

{"timestamp":"2026-01-04T15:30:45+00:00","endpoint":"rdgateway.wvd.microsoft.com","latency_ms":25.4,"status":"excellent"}

Configuration

Default Settings

Setting	Default	Description
Test Interval	10 seconds	How often to test endpoints
Theme	System	Light/Dark/System auto-detect
Notifications	Enabled	Windows toast alerts
Alert Threshold	3 checks	Consecutive failures before alert
Alert Cooldown	5 minutes	Minimum time between alerts
Graph Time Range	1 hour	History shown in graphs
FSLogix Enabled	Yes	Enable FSLogix storage monitoring (Session Host only)
FSLogix Test Interval	60 seconds	How often to test FSLogix storage paths
FSLogix Alert Threshold	3 checks	Consecutive failures before FSLogix alert
FSLogix Alert Cooldown	5 minutes	Minimum time between FSLogix alerts

Latency Thresholds

Status	Range	Color
Excellent	0-50ms	Green
Good	51-100ms	Yellow
Warning	101-150ms	Orange
Critical	>150ms	Red

Configuration Files

Main Settings:

%APPDATA%\AVDHealthMonitor\settings.json

Session Host Endpoints:

%APPDATA%\AVDHealthMonitor\sessionhost-endpoints.json

End User Endpoints:

%APPDATA%\AVDHealthMonitor\enduser-endpoints.json

Session Host Endpoints (Default)

Endpoint	URL	Port	Purpose
Azure AD Authentication	login.microsoftonline.com	443	Authentication
AVD Services (wildcard)	*.wvd.microsoft.com	443	RD Gateway, Web, Client, Broker
Windows Cloud Service	global.prod.service.windows.cloud.microsoft.com	443	Service Traffic
Azure Marketplace	catalogartifact.azureedge.net	443	Marketplace
Agent Updates	mrsglobalsteus2prod.blob.core.windows.net	443	Agent/SXS updates
Azure Portal Support	wvdportalstorageblob.blob.core.windows.net	443	Portal support
Azure Monitor	gcs.prod.monitoring.core.windows.net	443	Monitoring
Windows KMS	azkms.core.windows.net	1688	Windows activation
OCSP Certificates	oneocsp.microsoft.com	80	Certificate validation
Certificate Trust List	ctldl.windowsupdate.com	80	Certificate validation

End User Endpoints (Default)

Endpoint	URL	Port	Purpose
Azure AD Authentication	login.microsoftonline.com	443	Authentication
AVD RD Gateway	rdgateway.wvd.microsoft.com	443	RDP connectivity
AVD RD Web	rdweb.wvd.microsoft.com	443	Web access
AVD Client	client.wvd.microsoft.com	443	Client service
AVD RD Broker	rdbroker.wvd.microsoft.com	443	Connection broker
Windows Cloud	windows.cloud.microsoft	443	Connection center
Microsoft Graph	graph.microsoft.com	443	Service traffic
Office ECS	ecs.office.com	443	Connection center

Architecture

Tech Stack

Frontend:

React 18 + TypeScript 5
TailwindCSS 3
Recharts (graphs)
Zustand (state management)

Backend:

Tauri 2 (desktop framework)
Rust (system integration)
Tokio (async runtime)
reqwest (HTTP client)

Project Structure

avd-health-monitor/
├── src/                          # Frontend (React + TypeScript)
│   ├── components/
│   │   ├── Dashboard.tsx         # Main monitoring view
│   │   ├── EndpointCard.tsx      # Individual endpoint display
│   │   ├── FSLogixSection.tsx    # FSLogix storage monitoring
│   │   └── SettingsPanel.tsx     # Configuration UI
│   ├── hooks/
│   │   ├── useTrayIcon.ts        # Tray icon + notifications
│   │   └── useSettingsSync.ts    # Settings file synchronization
│   ├── store/
│   │   └── useAppStore.ts        # Global state (Zustand)
│   ├── services/
│   │   └── latencyService.ts     # Latency testing service
│   └── types.ts                  # TypeScript definitions
│
├── src-tauri/                    # Backend (Rust)
│   ├── src/
│   │   ├── lib.rs                # Main Tauri app + commands
│   │   ├── latency.rs            # TCP/HTTP latency testing
│   │   ├── settings.rs           # Settings + endpoint file management
│   │   ├── tray_icon.rs          # Dynamic icon generation
│   │   ├── logger.rs             # File logging
│   │   ├── autostart.rs          # Windows Registry auto-start
│   │   └── fslogix.rs            # FSLogix registry detection
│   ├── resources/
│   │   ├── settings.json         # Default settings
│   │   ├── sessionhost-endpoints.json
│   │   └── enduser-endpoints.json
│   └── tauri.conf.json           # Tauri configuration
│
└── .github/workflows/            # CI/CD
    ├── ci.yml                    # Build &amp; test
    └── release.yml               # Automated releases

Development

Prerequisites

Node.js 22+
pnpm 10+
Rust 1.75+ (stable)
Visual Studio Build Tools (Windows)

Setup Development Environment

# Clone repository
git clone https://github.com/seb07-cloud/avd-health-monitor.git
cd avd-health-monitor

# Install dependencies
pnpm install

# Run in development mode
pnpm tauri dev

Build for Production

# Build Windows MSI + EXE
pnpm tauri build

# Output:
# src-tauri/target/release/bundle/msi/*.msi
# src-tauri/target/release/avd-health-monitor.exe

Run Tests

# Frontend tests
pnpm test:run

# Rust tests
cd src-tauri &amp;&amp; cargo test

# Type checking
pnpm exec tsc --noEmit

Troubleshooting

App won't start

Ensure WebView2 is installed
Check Windows Event Viewer for errors
Try running as Administrator

No latency data showing

Verify internet connectivity
Check Windows Firewall isn't blocking the app
Ensure AVD endpoints are accessible from your network

Endpoint shows error but manual test works

Some endpoints (like www.msftconnecttest.com) only respond on specific ports
Check the endpoint configuration matches the expected port/protocol
HTTP endpoints (port 80) require http protocol, not tcp

Tray icon not visible

Check Windows system tray overflow area
Right-click taskbar → Taskbar settings → Enable the app icon

Mode switch doesn't trigger test

Ensure you're clicking the mode button, not just hovering
Check browser console for errors (F12 in dev mode)

FSLogix paths not showing

FSLogix monitoring only works in Session Host Mode
Ensure FSLogix is installed and configured on the VM
Check that FSLogix registry keys exist: HKLM\SOFTWARE\FSLogix\Profiles or HKLM\SOFTWARE\Policies\FSLogix\ODFC
Verify VHDLocations or CCDLocations registry values are set

FSLogix shows unreachable but storage works

The app tests SMB connectivity on port 445
Ensure SMB traffic is allowed through any firewalls
Check that the storage account allows SMB connections from the VM
Private endpoints may require specific DNS configuration

Contributing

Contributions are welcome! Please:

Fork the repository
Create a feature branch (git checkout -b feature/amazing-feature)
Commit your changes (git commit -m 'Add amazing feature')
Push to branch (git push origin feature/amazing-feature)
Open a Pull Request

License

This project is licensed under the MIT License - see LICENSE file for details.

Acknowledgments

Built with Tauri
Icons from Lucide
Charts by Recharts
Endpoint documentation from Microsoft Learn

Made for the AVD Community

Report Bug | Request Feature

AVD Health Monitor seb07-cloud

README
